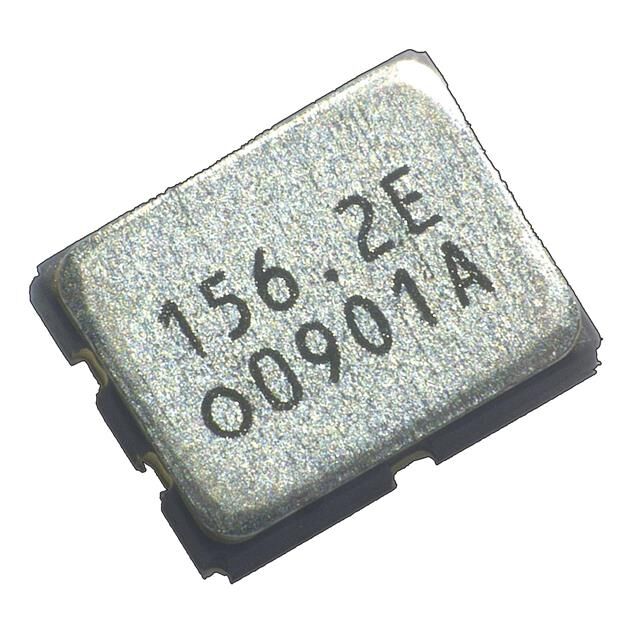

SG2520VHN 491.5200M-DKGPZB6

Active

EPSON

SG2520VHN 491.5200M-DKGPZB6: XTA

Search across all available documentation for this part.

Active

EPSON

SG2520VHN 491.5200M-DKGPZB6: XTA

Technical Specifications

Parameters and characteristics for this part

Specification	SG2520VHN 491.5200M-DKGPZB6

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	20 mA
Current - Supply (Max) [Max]	28 mA
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVDS
Package / Case	6-SMD, No Lead
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	6-SMD (2.5x2)
Type	XO (Standard)
Voltage - Supply	2.5 V

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output	Function	Current - Supply (Max) [Max]	Base Resonator	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Supply	Mounting Type	Current - Supply (Disable) (Max) [Max]	Type	Supplier Device Package	Frequency	Frequency Stability
EPSON SG2520VHN 491.5200M-DKGPZB6	0.85 mm	0.033 "	6-SMD No Lead	85 °C	-40 °C	LVDS	Enable/Disable	28 mA	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	2.5 V	Surface Mount	20 mA	XO (Standard)	6-SMD (2.5x2)
EPSON SG2520VHN 468.7500M-ECGPZAB	0.85 mm	0.033 "	6-SMD No Lead	85 °C	-40 °C	LVDS	Enable/Disable	28 mA	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	1.8 V	Surface Mount	20 mA	XO (Standard)	6-SMD (2.5x2)	468.75 MHz	20 ppm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 28.90

General part information

491.52 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
