657-20ABEP

Active

Wakefield-Vette

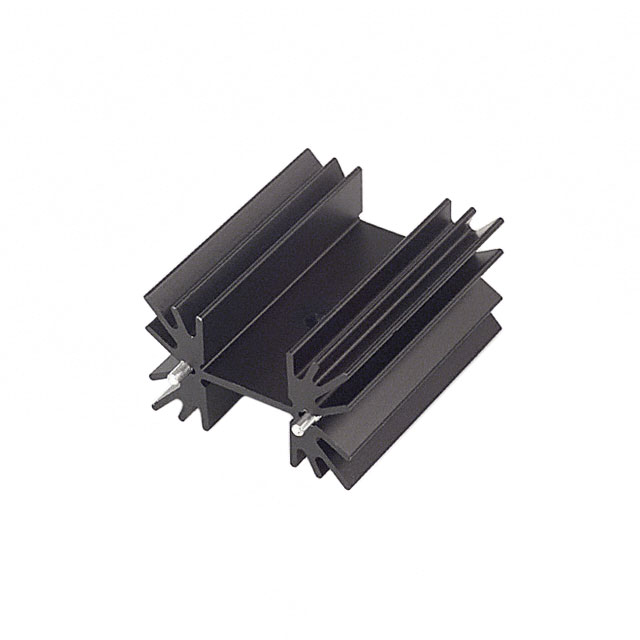

HEATSINK TO-220 W/PINS BLK 2"

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220 W/PINS BLK 2"

Technical Specifications

Parameters and characteristics for this part

Specification	657-20ABEP

Attachment Method	PC Pin, Bolt On
Fin Height [z]	50.8 mm
Fin Height [z]	2 in
Length [x]	1 in
Length [x]	25.4 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220, TO-218, TO-247
Power Dissipation @ Temperature Rise	6 W, 32 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	2.9 °C/W
Type	Board Level, Vertical
Width [x]	41.91 mm
Width [x]	1.65 in

Part	Attachment Method	Length [x]	Length [x]	Power Dissipation @ Temperature Rise	Package Cooled	Type	Width [x]	Width [x]	Shape	Material Finish	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Material
Wakefield-Vette 657-20ABEP	Bolt On PC Pin	1 in	25.4 mm	6 W 32 °C	TO-218 TO-220 TO-247	Board Level Vertical	41.91 mm	1.65 in	Rectangular Fins	Black Anodized	2.9 °C/W	50.8 mm	2 in	Aluminum
Wakefield-Vette 657-20ABPNE	Bolt On PC Pin	1 in	25.4 mm	6 W 32 °C	TO-218 TO-220 TO-247	Board Level Vertical	41.91 mm	1.65 in	Rectangular Fins	Black Anodized	2.9 °C/W	50.8 mm	2 in	Aluminum
