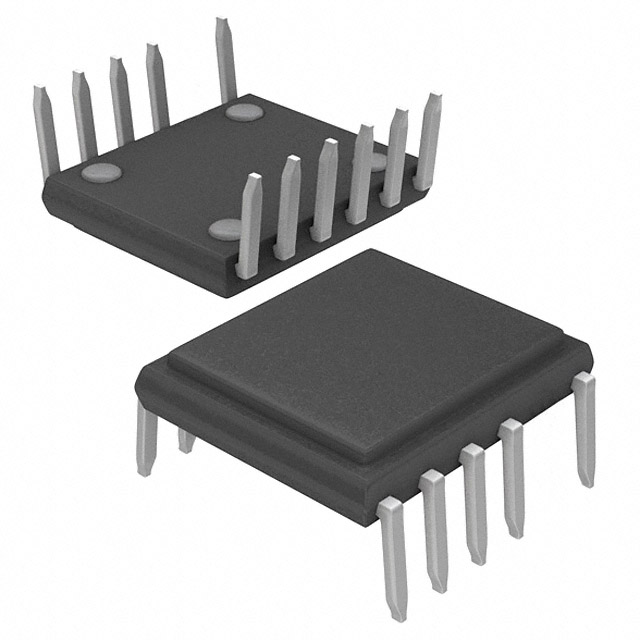

TOP269VG

Active

Power Integrations

120W (85-264V AC) 162W (230V AC) ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Power Integrations

120W (85-264V AC) 162W (230V AC) ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TOP269VG

Control Features	Frequency Control
Duty Cycle	78 %
Fault Protection	Over Load, Short Circuit, Over Voltage, Current Limiting, Over Temperature
Frequency - Switching	66 kHz, 132 kHz
Internal Switch(s)	True
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	10.46 mm, 0.412 in, 11 Leads
Package / Case	12-SDIP, Exposed Pad
Power (Watts)	51 W
Supplier Device Package	eDIP-12
Topology	Flyback
Voltage - Breakdown	725 V

Part	Supplier Device Package	Fault Protection	Duty Cycle	Control Features	Power (Watts)	Frequency - Switching	Package / Case	Package / Case	Package / Case	Package / Case	Voltage - Breakdown	Topology	Mounting Type	Output Isolation	Operating Temperature [Max]	Operating Temperature [Min]
Power Integrations TOP269KG-TL	12-ESOP	Current Limiting Over Load Over Temperature Over Voltage Short Circuit	78 %	Frequency Control	81 W	66 kHz 132 kHz	12-BESOP Exposed Pad	0.35 in	11 Leads	8.89 mm	725 V	Flyback	Surface Mount	Isolated	150 °C	-40 °C
Power Integrations TOP269KG	12-ESOP	Current Limiting Over Load Over Temperature Over Voltage Short Circuit	78 %	Frequency Control	81 W	66 kHz 132 kHz	12-BESOP Exposed Pad	0.35 in	11 Leads	8.89 mm	725 V	Flyback	Surface Mount	Isolated	150 °C	-40 °C
Power Integrations TOP269VG	eDIP-12	Current Limiting Over Load Over Temperature Over Voltage Short Circuit	78 %	Frequency Control	51 W	66 kHz 132 kHz	12-SDIP Exposed Pad		0.412 in 10.46 mm 11 Leads		725 V	Flyback	Through Hole	Isolated	150 °C	-40 °C
Power Integrations TOP269EG	eSIP-7C	Current Limiting Over Load Over Temperature Over Voltage Short Circuit	78 %	Frequency Control	162 W	66 kHz 132 kHz	7-SSIP 6 Leads Exposed Pad Formed Leads				725 V	Flyback	Through Hole	Isolated	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	960	$ 2.03

General part information

Converter Offline Flyback Topology 66kHz, 132kHz eDIP-12
