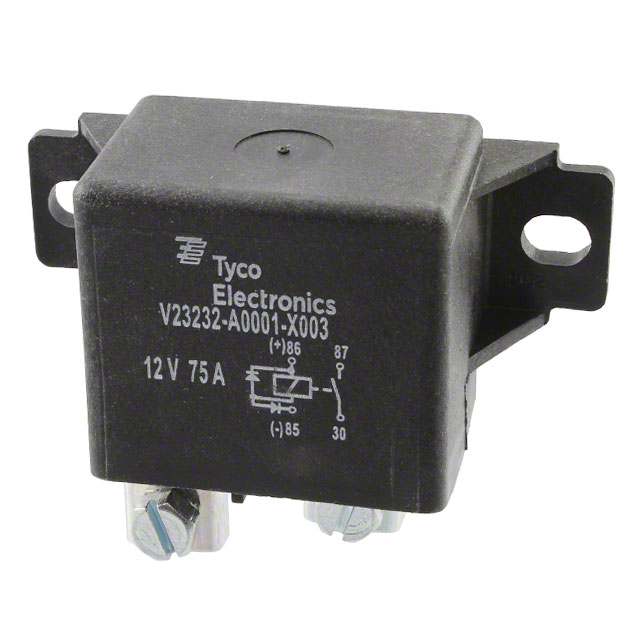

1904001-2

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY AUTO SPST-NO 75A 12V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY AUTO SPST-NO 75A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Contact Material	Contact Form	Coil Voltage	Must Release Voltage	Operate Time	Coil Power	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Coil Type	Switching Voltage	Contact Rating (Current)	Termination Style	Release Time	Must Operate Voltage
TE Connectivity Potter & Brumfield Relays 1904001-4	Chassis Mount	Silver Alloy	SPST-NO (1 Form A)	24 VDC	1 VDC	7 ms	4.4 W	125 °C	-40 °C	130 Ohms	Non Latching	24 VDC	30 A	Screw Terminal	2 ms	19 VDC
TE Connectivity Potter & Brumfield Relays 1904001-2	Chassis Mount	Silver (Ag)	SPST-NO (1 Form A)	12 VDC	4 VDC	10 ms		100 °C	-40 °C	46 Ohms	Non Latching		75 A	Screw Terminal	15 ms	8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RELAY AUTO SPST-NO 75A 12V

Technical documentation and resources

No documents available
