78M6631-EVM-1

Unknown

Analog Devices Inc./Maxim Integrated

EVAL BOARD 78M6631

Search across all available documentation for this part.

Unknown

Analog Devices Inc./Maxim Integrated

EVAL BOARD 78M6631

Technical Specifications

Parameters and characteristics for this part

Part	Measurement Error	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Meter Type	Input Impedance [Max]	Input Impedance [Min]	Current - Supply	Voltage - I/O High	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - I/O Low	Mounting Type	Supplier Device Package	Utilized IC / Part	Supplied Contents	Function	Type
Analog Devices Inc./Maxim Integrated 78M6631-IMR/F	0.5 %	56-WFQFN Exposed Pad	85 °C	-40 °C	3 Phase	90 kOhm	40 kOhm	9.1 mA	2 V	3 V	3.6 V	0.8 V	Surface Mount	56-TQFN (7x7)
Analog Devices Inc./Maxim Integrated 78M6631-IM/F/P2	0.5 %	68-VFQFN Exposed Pad	85 °C	-40 °C	3 Phase	90 kOhm	40 kOhm	9.1 mA	2 V	3 V	3.6 V	0.8 V	Surface Mount	68-SQFN (8x8)
Analog Devices Inc./Maxim Integrated 78M6631-IMR/F/P48	0.5 %	56-WFQFN Exposed Pad	85 °C	-40 °C	3 Phase	90 kOhm	40 kOhm	9.1 mA	2 V	3 V	3.6 V	0.8 V	Surface Mount	56-TQFN (7x7)
Analog Devices Inc./Maxim Integrated 78M6631-EVM-1															78M6631	Board(s) Cable(s)	Energy/Power Meter	Power Management
Analog Devices Inc./Maxim Integrated 78M6631-IM/F	0.5 %	56-WFQFN Exposed Pad	85 °C	-40 °C	3 Phase	90 kOhm	40 kOhm	9.1 mA	2 V	3 V	3.6 V	0.8 V	Surface Mount	56-TQFN (7x7)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 360.00

General part information

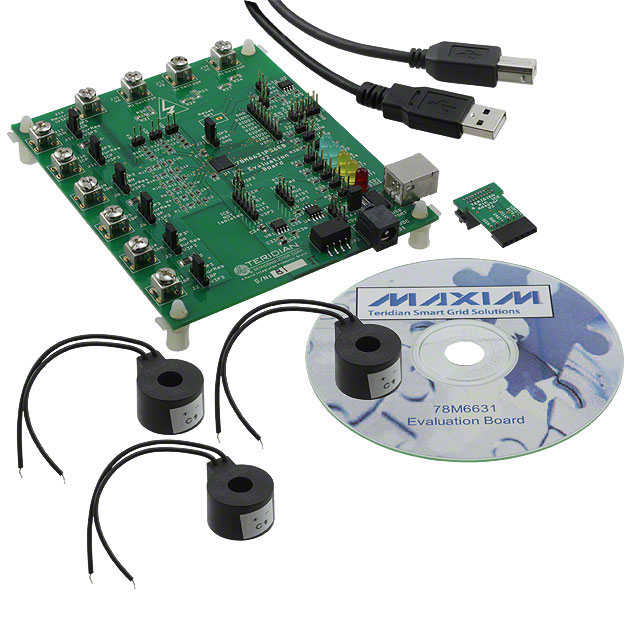

78M6631 Energy/Power Meter Power Management Evaluation Board
