16-00142

Active

Tensility International Corp

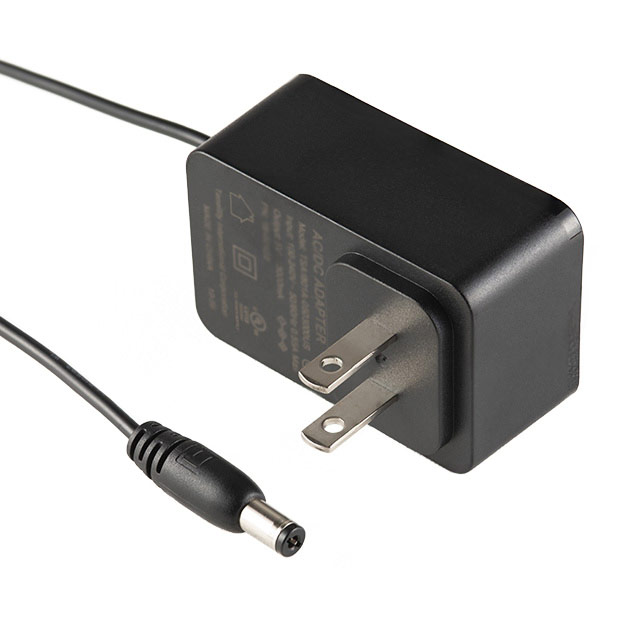

AC/DC WALL MOUNT ADAPTER 12V 18W

Search across all available documentation for this part.

Active

Tensility International Corp

AC/DC WALL MOUNT ADAPTER 12V 18W

Technical Specifications

Parameters and characteristics for this part

Part	Region Utilized	Power (Watts)	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption	Input Connector	Voltage - Output	Polarization	Input Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Form	Approval Agency	Weight	Weight	Output Connector [x]	Output Connector [diameter]	Output Connector	Applications	Cord Length	Cord Length	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]
Tensility International Corp 16-00187	North America	24 W	Level VI	240 VAC	100 VAC	45 °C	0 °C	100 mW	NEMA 1-15P	12 V	Positive Center	Fixed Blade	68.5 mm	1.69 in	32.5 mm	43 mm	1.28 in	2.7 in	Wall Mount (Class II)	cULus FCC	0.245 lb	111.13 g	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	ITE (Commercial)	1.5 m	59 in	2 A
Tensility International Corp 16-00142	North America	18 W	Level VI	240 VAC	100 VAC	45 °C	0 °C	100 mW	NEMA 1-15P	12 V	Positive Center	Fixed Blade	63.5 mm	1.63 in			1.18 in	63.5 mm	Wall Mount (Class II)	cULus FCC	0.21 lb	95.25 g	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	1.5 m	59 in	1.5 A	41.5 mm	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Technical documentation and resources

No documents available
