242131RP
ActiveAmphenol RF

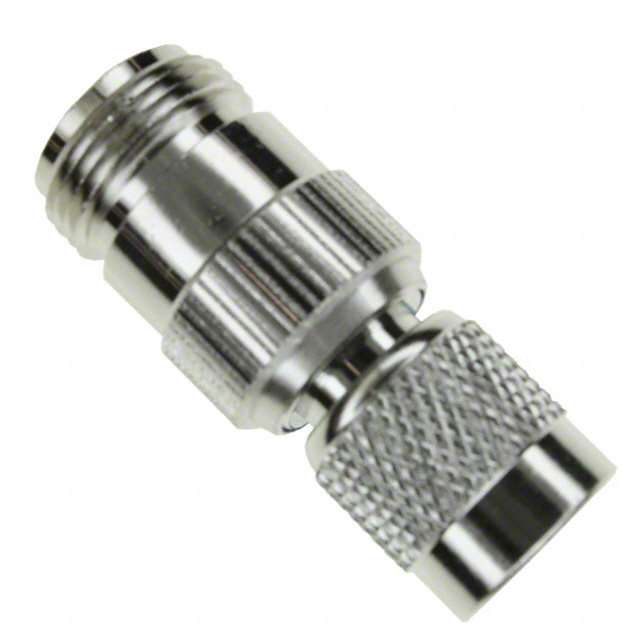

RF / COAXIAL ADAPTER, N, JACK, TNC RP, PLUG, STRAIGHT ADAPTER, 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
242131RP
ActiveAmphenol RF
RF / COAXIAL ADAPTER, N, JACK, TNC RP, PLUG, STRAIGHT ADAPTER, 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 242131RP |
|---|---|
| Adapter Series | RP-TNC to N |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | RP-TNC Plug, Female Socket |
| Convert To (Adapter End) | Female Socket, N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
242131 Series
The 242131RP is a RF/coaxial Straight Adapter with N-type jack to TNC RP plug connection. It has nickel-plated brass body, gold-plated phosphor bronze contact and a PTFE insulator.
Documents
Technical documentation and resources
No documents available
