LK204-7T-1U-GW

Active

Matrix Orbital

LCD MOD 80DIG 20X4 TRANSMISV WHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LK204-7T-1U-GW

Active

Matrix Orbital

LCD MOD 80DIG 20X4 TRANSMISV WHT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LK204-7T-1U-GW

Background Color	White
Backlight	LED - White
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	3.2 mm
Character Size [z]	5.15 mm
Display Format [x]	20
Display Format [y]	4
Display Mode	Transmissive
Display Type	LCD - Color
Dot Size [custom]	0.65 mm
Dot Size [custom]	0.6 mm
Interface	TTL, I2C, RS-232
Number of Characters	80
Outline L x W x H [x]	144 mm
Outline L x W x H [y]	38 mm
Outline L x W x H [z]	34.3 mm
Text Color	Gray
Viewing Area [x]	82 mm
Viewing Area [y]	28.4 mm
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

LK204 Series

Part	Dot Size [custom]	Dot Size [custom]	Viewing Area [x]	Viewing Area [y]	Interface	Text Color	Display Mode	Number of Characters	Backlight	Display Format [y]	Display Format [x]	Display Type	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [z]	Character Size [y]	Character Format [y]	Character Format [x]	Background Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Dot Size [x]	Dot Size [y]
Matrix Orbital LK204-7T-1U-GW	0.65 mm	0.6 mm	82 mm	28.4 mm	I2C RS-232 TTL	Gray	Transmissive	80	LED - White	4	20	LCD - Color	144 mm	34.3 mm	38 mm	4.75 V	5.25 V	5.15 mm	3.2 mm	8 Dots	5 Dots	White
Matrix Orbital LK204-7T-1U-TCI-LV-E	0.65 mm	0.6 mm	82 mm	28.4 mm	I2C RS-232 TTL	Blue Green Red	Transmissive	80	Blue Green LED Red	4	20	LCD - Color	144 mm	34.3 mm	38 mm			5.15 mm	3.2 mm	8 Dots	5 Dots	Black	-20 C	70 °C	3.3 V
Matrix Orbital LK204-25-422-R-VPT-E			70.4 mm	20.8 mm		Red		80		4	20	LCD - Monochrome	98 mm	28.82 mm	60 mm	9 V	35 V			8 Dots	5 Dots	Black	-20 C	70 °C		0.55 mm	0.55 mm
Matrix Orbital LK204-7T-1U-WB-LV-E	0.65 mm	0.6 mm	82 mm	28.4 mm	I2C RS-232 TTL	White	Transmissive	80	LED - Blue	4	20	LCD - Color	144 mm	34.3 mm	38 mm			5.15 mm	3.2 mm	8 Dots	5 Dots	Blue	-20 C	70 °C	3.3 V
Matrix Orbital LK204-25-V-E			70.4 mm	20.8 mm	I2C RS-232 TTL	Yellow		80		4	20	LCD - Monochrome	98 mm	28.82 mm	60 mm	9 V	15 V			8 Dots	5 Dots	Black	-20 C	70 °C		0.55 mm	0.55 mm
Matrix Orbital LK204-25-422-WB-VPT-E			70.4 mm	20.8 mm		White		80		4	20	LCD - Monochrome	98 mm	28.82 mm	60 mm	9 V	35 V			8 Dots	5 Dots	Blue	-20 C	70 °C		0.55 mm	0.55 mm
Matrix Orbital LK204-25-GW-E			76 mm	25.2 mm	I2C RS-232 TTL	Gray	Transmissive	80	LED - White	4	20	TN - Twisted Nematic	98 mm	28.98 mm	60 mm	4.75 V	5.25 V			8 Dots	5 Dots	White	-20 C	70 °C		0.55 mm	0.55 mm
Matrix Orbital LK204-25-IY			76 mm	25.2 mm	I2C RS-232 TTL	Yellow	Transmissive	80		4	20	TN - Twisted Nematic	98 mm	28.98 mm	60 mm	4.75 V	5.25 V			8 Dots	5 Dots	Black				0.55 mm	0.55 mm
Matrix Orbital LK204-25-E			76 mm	25.2 mm	I2C RS-232 TTL	Gray	Transmissive	80		4	20	TN - Twisted Nematic	98 mm	28.98 mm	60 mm	4.75 V	5.25 V			8 Dots	5 Dots	Green	-20 C	70 °C		0.55 mm	0.55 mm
Matrix Orbital LK204-25-USB-WB			76 mm	25.2 mm	USB	White	Transmissive	80	LED - Blue	4	20	LCD - Color	98 mm	27.7 mm	60 mm	4.75 V	5.25 V			8 Dots	5 Dots	Blue				0.55 mm	0.55 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 74.98
		50	$ 61.85

Description

General part information

LK204 Series

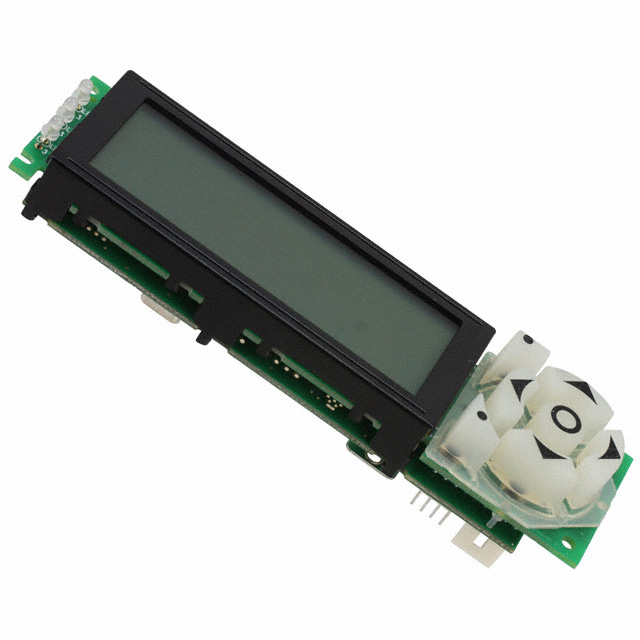

Character Display Module Transmissive 5 x 8 Dots LCD - Color LED - White I2C, RS-232, TTL 144.00mm x 38.00mm x 34.30mm
