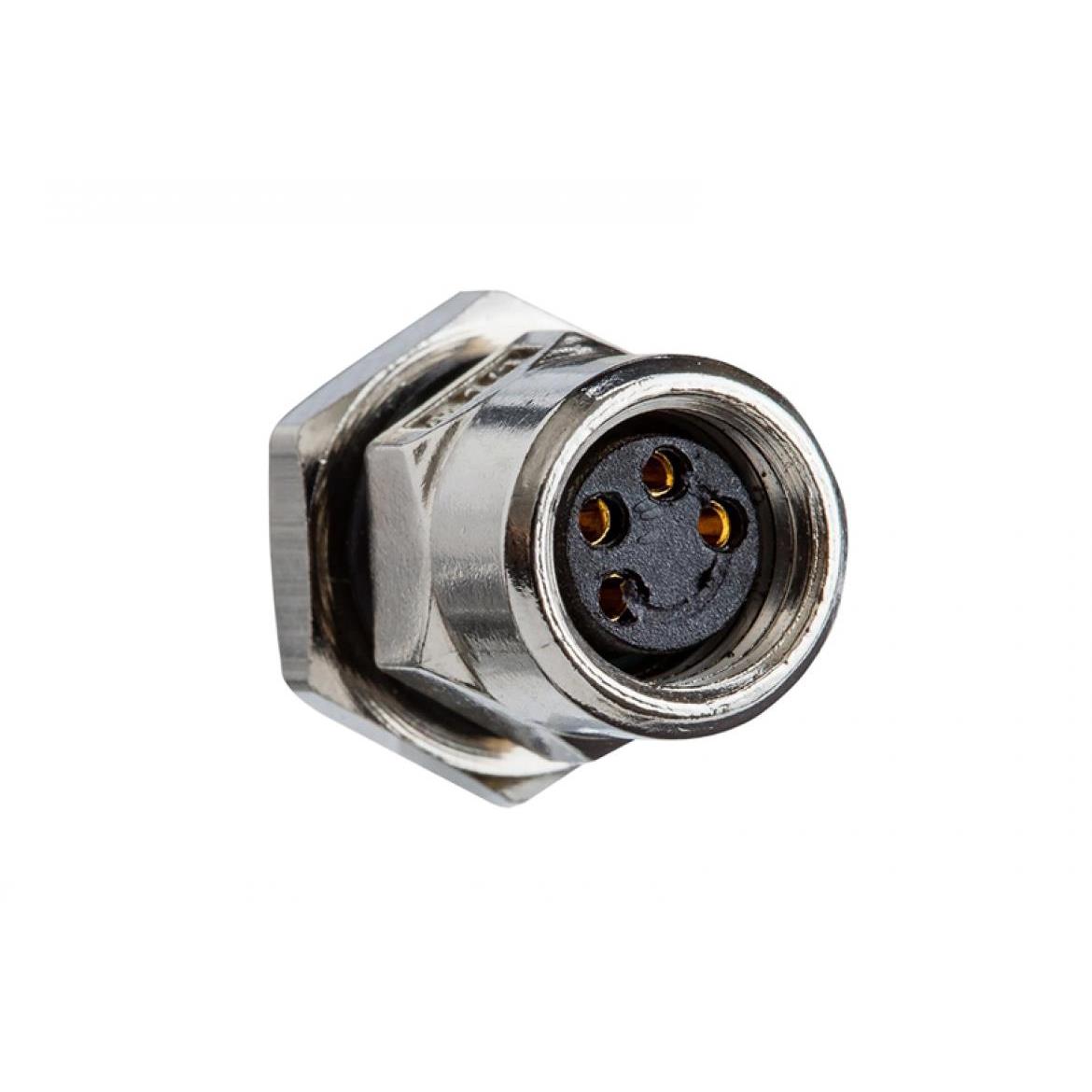

8A-04PFFS-SH7001

Active

Amphenol LTW

M8 CONN WITH KEY

Search across all available documentation for this part.

Active

Amphenol LTW

M8 CONN WITH KEY

Technical Specifications

Parameters and characteristics for this part

Specification	8A-04PFFS-SH7001

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-4
Shielding	Shielded
Voltage Rating	30 VDC

Part	Shielding	Number of Positions	Connector Type	Shell Material	Insert Material	Contact Material	Material Flammability Rating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Mating	Primary Material	Ingress Protection	Mounting Feature	Shell Size - Insert	Orientation	Shell Finish	Voltage Rating
Amphenol LTW 8A-04PFFS-SH7001	Shielded	4	Female Sockets Plug	Zinc Alloy	Polyamide (PA) Nylon Glass Filled	Copper Alloy	UL94 V-0	Silver	-40 °C	105 ░C	3 A	Gold	Metal	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	M8-4	Keyed	Nickel	30 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

No documents available
