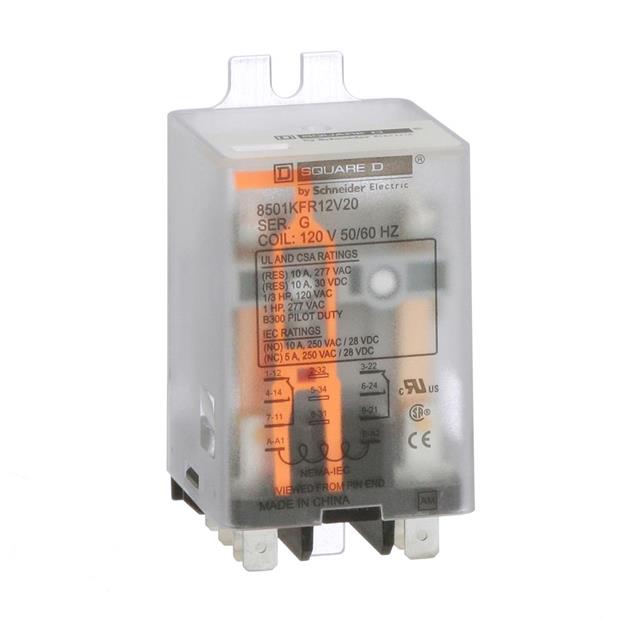

8501KFR12V20

Active

SQUARE D BY SCHNEIDER ELECTRIC

PLUG IN RELAY, TYPE KF, FLANGE M

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

PLUG IN RELAY, TYPE KF, FLANGE M

Technical Specifications

Parameters and characteristics for this part

Specification	8501KFR12V20

Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Load - Max Switching	3000 VA, 300 W
Mounting Type	Chassis Mount
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	300 VAC, 30 VDC
Termination Style	Quick Connect - Multiple Sizes

Part	Mounting Type	Contact Rating (Current)	Load - Max Switching	Termination Style	Contact Form	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Operate Time	Switching Voltage [Max]	Relay Type	Coil Voltage	Contact Material
SQUARE D BY SCHNEIDER ELECTRIC 8501KFR12V20	Chassis Mount	10 A	300 W 3000 VA	Quick Connect - Multiple Sizes	DPDT (2 Form C)	Non Latching	-40 °C	55 °C	20 ms	20 ms	30 VDC 300 VAC	General Purpose	120 VAC	Silver Nickel (AgNi)
