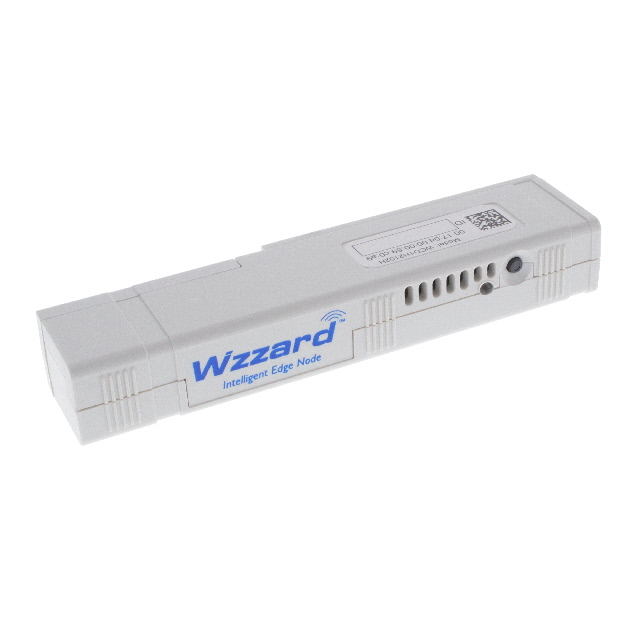

BB-WCD1H2102H

Obsolete

Advantech Corp

WZZARD MESH COMMERCIAL COOLERHVA

Search across all available documentation for this part.

Obsolete

Advantech Corp

WZZARD MESH COMMERCIAL COOLERHVA

Technical Specifications

Parameters and characteristics for this part

Specification	BB-WCD1H2102H

Applications	Wireless, Wireless Mesh Networks, IoT Finished Device
Data Rate (Max)	250 kbps
Features	15 Channels
Frequency	2.4 GHz
Frequency [Max]	2.4835 GHz
Frequency [Min]	2.4 GHz
Function	Sensor
Interface	Analog, Digital
Modulation or Protocol	802.15.4, DSSS
Power - Output	8 dBm
Sensitivity	-95 dBm
Voltage - Supply	3.6 V
Voltage - Supply [Max]	48 V
Voltage - Supply [Min]	0 V

Part	Function	Power - Output	Data Rate (Max)	Frequency [Min]	Frequency [Max]	Voltage - Supply	Applications	Modulation or Protocol	Features	Sensitivity	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency
Advantech Corp BB-WCD1TA3	Node	8 dBm	250 kbps	2.4 GHz	2.48 GHz	3.3 V	Wireless Mesh Networks	802.15.4 Bluetooth DSSS EDGE	100m Range	-95 dBm	10/100 BaseT Ethernet Analog
Advantech Corp BB-WCD1H2102H	Sensor	8 dBm	250 kbps	2.4 GHz	2.4835 GHz	3.6 V	IoT Finished Device Wireless Wireless Mesh Networks	802.15.4 DSSS	15 Channels	-95 dBm	Analog Digital	0 V	48 V	2.4 GHz
Advantech Corp BB-WCD1TD2	Node	8 dBm	250 kbps	2.4 GHz	2.48 GHz	3.3 V	Wireless Mesh Networks	802.15.4 Bluetooth DSSS EDGE	100m Range	-95 dBm	10/100 BaseT Ethernet Digital

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Sensor 2.4GHz 802.15.4 Analog, Digital 250kbps
