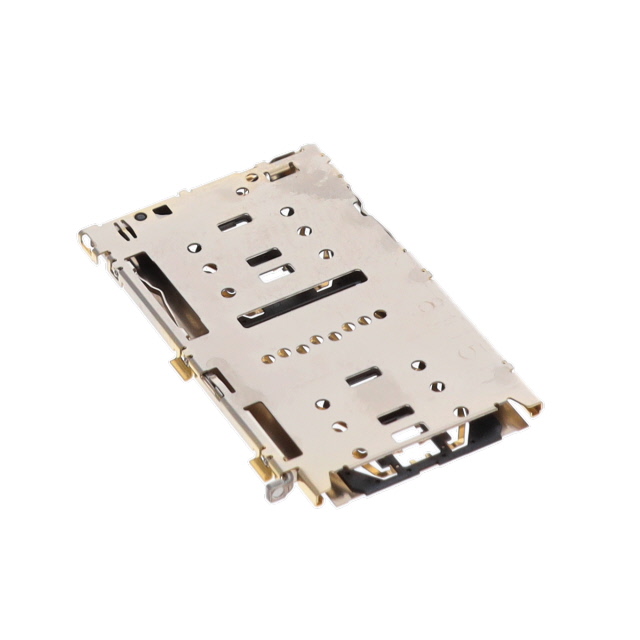

ST19S020VCAR1400
ActiveJAE Electronics
COMBO MICRO SD/NANO SIM R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST19S020VCAR1400
ActiveJAE Electronics
COMBO MICRO SD/NANO SIM R/A SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST19S020VCAR1400 |
|---|---|
| Card Type | Combo - microSD™, NANO SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Features | Switch, Board Guide |
| Height Above Board | 1.3 mm |
| Height Above Board [z] | 0.051 " |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.34 | |
| 10 | $ 3.03 | |||
| 25 | $ 2.87 | |||
| 50 | $ 2.80 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.34 | |||
| 500 | $ 2.27 | |||
| Digi-Reel® | 1 | $ 3.34 | ||
| 10 | $ 3.03 | |||
| 25 | $ 2.87 | |||
| 50 | $ 2.80 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.34 | |||
| 500 | $ 2.27 | |||
| Tape & Reel (TR) | 1400 | $ 1.93 | ||
| 2800 | $ 1.80 | |||
Description
General part information
ST19S020 Series
20 Position Card Connector Combo - microSD™, NANO SIM Surface Mount, Right Angle Gold
