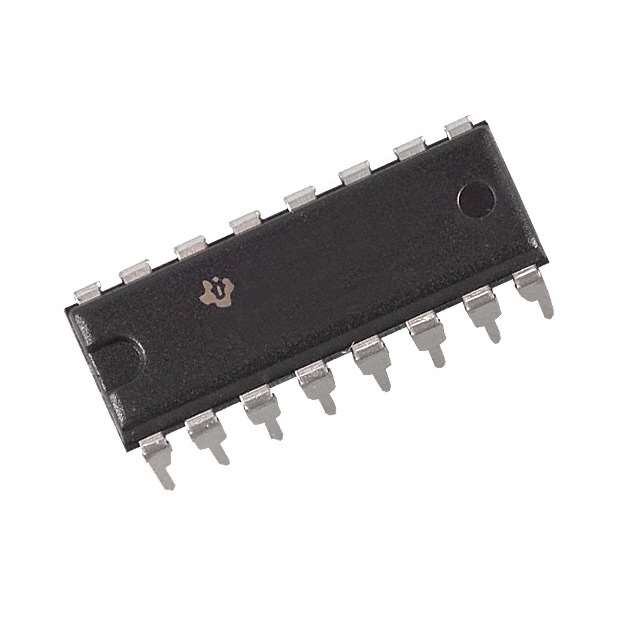

XTR110AG
ActiveVOLTAGE-TO-CURRENT CONVERTER/TRANSMITTER WITH 10-V REFERENCE AND SELECTABLE INPUT/OUTPUT RANGES
Deep-Dive with AI
Search across all available documentation for this part.
XTR110AG
ActiveVOLTAGE-TO-CURRENT CONVERTER/TRANSMITTER WITH 10-V REFERENCE AND SELECTABLE INPUT/OUTPUT RANGES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XTR110AG |
|---|---|
| Current - Supply | 20 mA |
| Input Type | Voltage |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Current |
| Package / Case | 7.62 mm, 0.3 in |
| Package / Case | 16-CDIP |
| Supplier Device Package | 16-CDIP |
| Type | Current Transmitter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 6 | $ 75.28 | |
| 10 | $ 71.51 | |||
| 25 | $ 69.63 | |||
| 100 | $ 64.46 | |||
| Texas Instruments | TUBE | 1 | $ 88.79 | |
| 100 | $ 77.56 | |||
| 250 | $ 59.80 | |||
| 1000 | $ 53.49 | |||
Description
General part information
XTR110 Series
The XTR110 is a precision voltage-to-current converter designed for analog signal transmission. It accepts inputs of 0 to 5V or 0 to 10V and can be connected for outputs of 4 to 20mA, 0 to 20mA, 5 to 25mA and many other commonly used ranges.
A precision on-chip metal film resistor network provides input scaling and current offsetting. An internal 10V voltage reference can be used to drive external circuitry.
The XTR110 is available in 16-pin plastic DIP, ceramic DIP and SOL-16 surface-mount packages. Commercial and industrial temperature range models are available.
