325536009-00

Obsolete

TE Connectivity Measurement Specialties

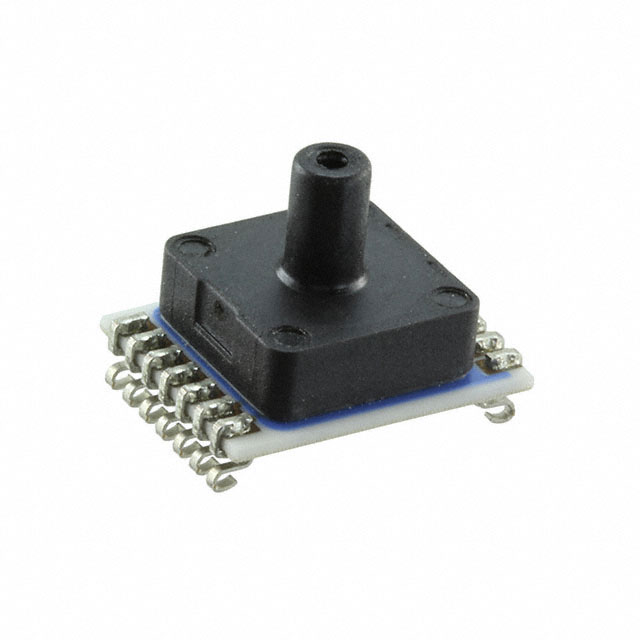

SENSOR 5.8PSIG 0.12" 16BIT

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 5.8PSIG 0.12" 16BIT

Technical Specifications

Parameters and characteristics for this part

Part	Pressure Type	Port Style	Applications	Output Type	Output	Mounting Type	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Package / Case	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Features	Accuracy	Accuracy	Maximum Pressure	Maximum Pressure
TE Connectivity Measurement Specialties 325536008-00	Vented Gauge	Barbless	Board Mount	SPI	16 b	Surface Mount	Male - Tube	0.12 " 3 mm	85 °C	-40 °C	2.2 V	3.6 V	SMD (SMT) Tab	14-SMD Module
TE Connectivity Measurement Specialties 325536009-00	Vented Gauge	Barbless	Board Mount	SPI	16 b	Surface Mount	Male - Tube	0.12 " 3 mm	85 °C	-40 °C	2.2 V	3.6 V	SMD (SMT) Tab	14-SMD Module	5.8 PSI	40 kPa	-14.5 PSI	-1 bar
TE Connectivity Measurement Specialties 325534009-50		No Port	Board Mount	SPI	16 b				125 °C	-40 °C	2.2 V	3.6 V	SMD (SMT) Tab	Module	15.95 PSI	110 kPa	0.15 PSI	1 kPa	Temperature Compensated	0.15 kPa	0.022 PSI	1000 kPa	145.04 PSI
TE Connectivity Measurement Specialties 325535009-50													PCB	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor -14.5PSI ~ 5.8PSI (-100kPa ~ 40kPa) Vented Gauge Male - 0.12" (3mm) Tube 16 b 14-SMD Module
