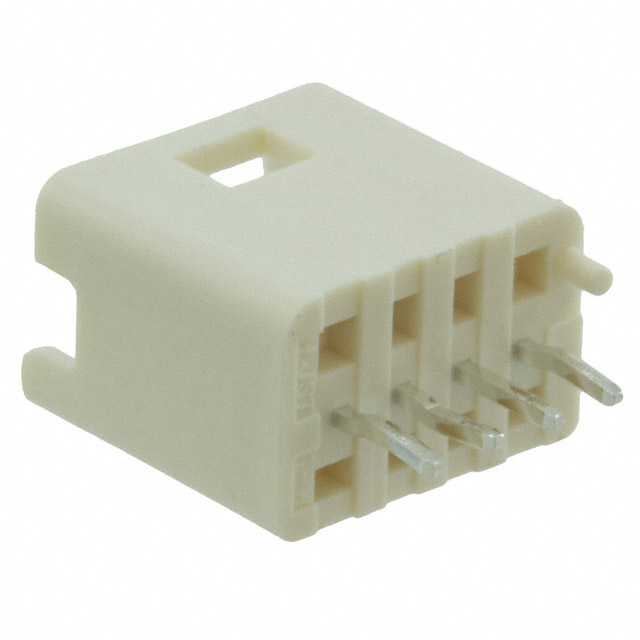

B04B-PNISK-1A

Active

JST Sales America Inc.

CONN HEADER VERT 4POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 4POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B04B-PNISK-1A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.402 in
Insulation Height	10.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	100 V

Part	Insulation Height	Insulation Height	Number of Rows	Features	Number of Positions Loaded	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Contact Shape	Mated Stacking Heights	Contact Type	Connector Type	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish - Post	Insulation Material	Number of Positions	Termination	Style	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. B04B-PNISK-1A	0.402 in	10.2 mm	1	Board Guide	All	Through Hole	3 A	UL94 V-0	Square	12.25 mm	Male Pin	Header	100 V	0.134 in	3.4 mm	Natural	Tin	Polyamide (PA66) Nylon 6/6 Glass Filled	4	Press-Fit Solder	Board to Cable/Wire	Copper Alloy	0.079 in	2 mm	Shrouded - 4 Wall	Latch Lock	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.079" (2.00mm)

Technical documentation and resources
