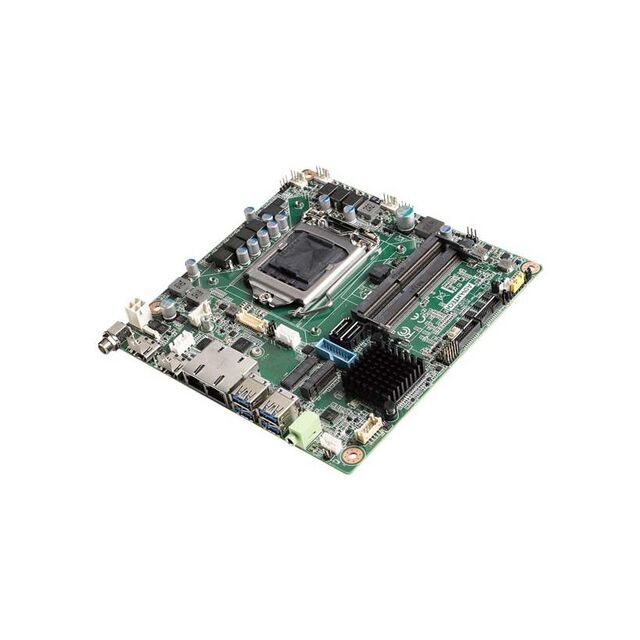

AIMB-287FL-00A1E

Active

Advantech Corp

SBC 1 CORE 64GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 1 CORE 64GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	AIMB-287FL-00A1E

Core Processor	i3, i7, LGA1200, Intel 10th Gen Core i9, Celeron, Pentium, i5
Ethernet	1000 Mbps, 10 Mbps, 100 Mbps
Ethernet	RJ45 (2), GbE (2)
Expansion Site/Bus	M.2, SPI, PCIe
Form Factor	mini-ITX
Number of Cores	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	0 GB, 64 GB
RS-232 (422, 485)	4
Size / Dimension [x]	170 mm
Size / Dimension [x]	6.693 "
Size / Dimension [y]	170 mm
Size / Dimension [y]	6.693 "
Storage Interface	M.2, SATA 3.0 (2), SSD
USB	USB 3.0 (6), USB 2.0 (2)
Video Outputs	HDMI, eDP
Watchdog Timer	True

Part	Expansion Site/Bus	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Storage Interface	Number of Cores	Operating Temperature [Max]	Operating Temperature [Min]	Ethernet	Ethernet	RAM Capacity/Installed	Form Factor	RS-232 (422, 485)	Video Outputs	Core Processor	USB	Watchdog Timer	Speed
Advantech Corp AIMB-287G2-00A1N	GPIO M.2 PCIe SATA	170 mm	170 mm	6.69 "	6.69 in	M.2 SATA 3.0 (2)	2 4 6 8 10	60 °C	0 °C	10 Mbps 100 Mbps 1000 Mbps	GbE (2) RJ45 (2)	0 GB 64 GB	mini-ITX	2	eDP HDMI	Celeron i3 i5 i7 Intel 10th Gen Core i9 LGA1200 Pentium	USB 2.0 (2) USB 3.0 (6)		1.8 GHz 2 GHz 2.3 GHz 2.8 GHz 2.9 GHz 3 GHz 3.1 GHz 3.2 GHz 3.8 GHz
Advantech Corp AIMB-287FL-00A1E	M.2 PCIe SPI	170 mm	170 mm	6.693 "	6.693 "	M.2 SATA 3.0 (2) SSD	1	60 °C	0 °C	10 Mbps 100 Mbps 1000 Mbps	GbE (2) RJ45 (2)	0 GB 64 GB	mini-ITX	4	eDP HDMI	Celeron i3 i5 i7 Intel 10th Gen Core i9 LGA1200 Pentium	USB 2.0 (2) USB 3.0 (6)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 362.15

General part information

Single Board Computer 1 Core 64GB/0GB RAM Intel 10th Gen Core i9/i7/i5/i3 Pentium/Celeron LGA1200

Technical documentation and resources

No documents available
