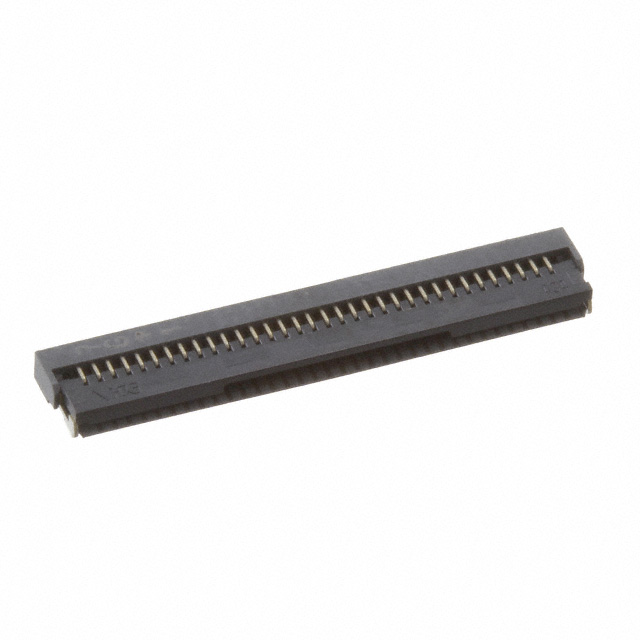

FH65-34S-0.5SH(99)
ActiveHirose Electric USA, Inc.
CONN FFC BOTTOM 34POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FH65-34S-0.5SH(99)
ActiveHirose Electric USA, Inc.
CONN FFC BOTTOM 34POS 0.5MM R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FH65-34S-0.5SH(99) |
|---|---|
| Actuator Color | Black |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Cable End Type | Tabbed |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.25 Áin |
| Contact Finish Thickness | 0.03 Ám |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.047 " |
| Height Above Board | 1.2 mm |
| Housing Color | Gray |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Locking Feature | Flip Lock |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 34 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.54 | |
| 10 | $ 3.21 | |||
| 25 | $ 3.04 | |||
| 50 | $ 2.97 | |||
| 100 | $ 2.83 | |||
| 250 | $ 2.47 | |||
| Digi-Reel® | 1 | $ 3.54 | ||
| 10 | $ 3.21 | |||
| 25 | $ 3.04 | |||
| 50 | $ 2.97 | |||
| 100 | $ 2.83 | |||
| 250 | $ 2.47 | |||
| Tape & Reel (TR) | 500 | $ 1.84 | ||
| 1000 | $ 1.75 | |||
Description
General part information
FH65 Series
34 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
