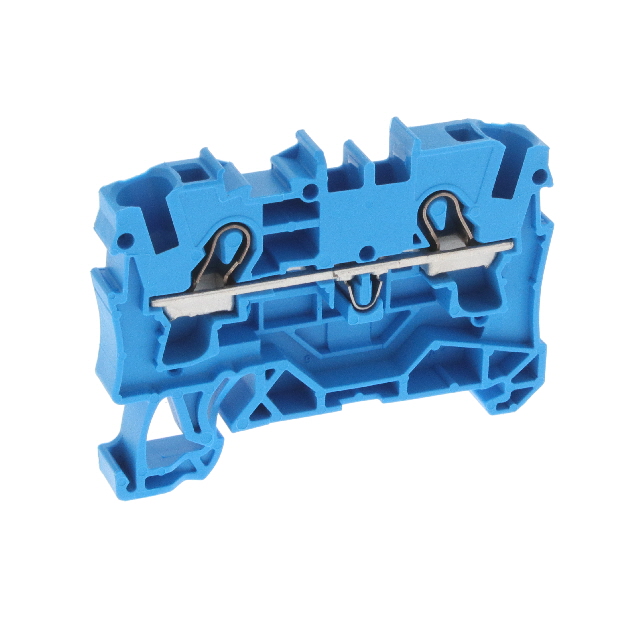

2004-1204

Active

WAGO Corporation

2-CONDUCTOR THROUGH TERMINAL BLO

Search across all available documentation for this part.

Active

WAGO Corporation

2-CONDUCTOR THROUGH TERMINAL BLO

Technical Specifications

Parameters and characteristics for this part

Part	For Use With/Related Products	Type	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Number of Positions	Terminal - Width [y]	Stripping Length [Max]	Stripping Length [Min]	Material - Insulation	Current - UL	Current - IEC	Voltage - UL	Voltage - IEC
WAGO Corporation 2004-1292	TOPJOB®S Series	End Plate
WAGO Corporation 2004-1207		Ground Earth	1	6 mm²	1.5 mm²	Green Yellow	14 AWG	10 AWG	Push In Spring	2	6.2 mm	13 mm	11 mm	Polyamide (PA66) Nylon 6/6
WAGO Corporation 2004-1291	TOPJOB®S Series	End Plate				Gray
WAGO Corporation 2004-1204		Feed Through	1	6 mm²	1.5 mm²	Blue	14 AWG	10 AWG	Push In Spring	2	6.2 mm	13 mm	11 mm	Polyamide (PA66) Nylon 6/6	30 A	41 A	600 V	800 V
WAGO Corporation 2004-1201		Feed Through	1	6 mm²	1.5 mm²	Gray	14 AWG	10 AWG	Push In Spring	2	6.2 mm	13 mm	11 mm	Polyamide (PA66) Nylon 6/6	30 A	41 A	600 V	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Feed Through Blue 10-14 AWG

Technical documentation and resources

No documents available
