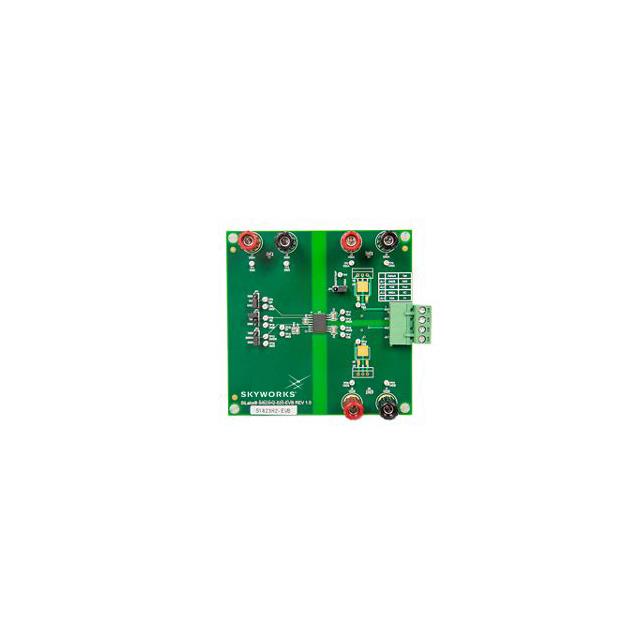

SI823H2 GATE AND POWER DRIVER EVALUATION KIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI823H2-KIT

Active

Skyworks Solutions Inc.

SI823H2 GATE AND POWER DRIVER EVALUATION KIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI823H2-KIT

Contents	Board(s)
Function	Gate Driver
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	SI823H2

SI823 Series

Part	Number of Channels	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Common Mode Transient Immunity (Min) [Min]	Approval Agency	Pulse Width Distortion (Max)	Package / Case	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Peak Output	Voltage - Isolation	Technology	Propagation Delay tpLH / tpHL (Max) [Max]	Supplier Device Package	Type	Supplied Contents	Function	Contents	Utilized IC / Part	Package / Case	Package / Case	Number of Channels [custom]	Package / Case [x]	Package / Case [y]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)
Skyworks Solutions Inc. SI823H3AB-IM1	1	30 V	5.5 V	125 V/ns	CQC CSA UL VDE	5 ns	14-VDFN	4 A	4 A	Surface Mount	125 °C	-40 °C	12 ns	12 ns	6 A	2500 Vrms	Capacitive Coupling	116 ns	14-QFN (5x5)
Skyworks Solutions Inc. SI823H2-KIT																				Power Management	Board(s)	Gate Driver	Board(s)	SI823H2
Skyworks Solutions Inc. SI823H8BD-IS3R	1	30 V	5.5 V	125 V/ns	CQC CSA UL VDE	5 ns	14-SOIC	4 A	4 A	Surface Mount	125 °C	-40 °C	12 ns	12 ns	6 A		Capacitive Coupling	30 ns							0.295 in	7.5 mm
Skyworks Solutions Inc. SI823HEN1-IS3
Skyworks Solutions Inc. SI823H4CD-IS3	1	30 V	5.5 V	125 V/ns	CQC CSA UL VDE	5 ns	14-SOIC	4 A	4 A	Surface Mount	125 °C	-40 °C	12 ns	12 ns	6 A		Capacitive Coupling	30 ns							0.295 in	7.5 mm
Skyworks Solutions Inc. SI823H5AB-IM1		30 V	5.5 V	125 V/ns	CQC CSA UL VDE	5 ns	14-VDFN	4 A	4 A	Surface Mount	125 °C	-40 °C	12 ns	12 ns	6 A	2500 Vrms	Capacitive Coupling	30 ns	14-QFN (5x5)								2
Skyworks Solutions Inc. SI823H1CB-IS1		30 V	5.5 V	125 V/ns	CQC CSA UL VDE	5 ns	16-SOIC	4 A	4 A	Surface Mount	125 °C	-40 °C			6 A	2500 Vrms	Capacitive Coupling		16-SOIC								2	0.154 in	3.9 mm	30 ns	58 ns	12 ns	12 ns
Skyworks Solutions Inc. SI823H1BB-IS1		8.2 V	7 V	125 V/ns	CQC CSA UL VDE	5 ns	16-SOIC	4 A	4 A	Surface Mount	125 °C	-40 °C	12 ns	12 ns	6 A	2500 Vrms	Capacitive Coupling	30 ns	16-SOIC								2	0.154 in	3.9 mm
Skyworks Solutions Inc. SI823H6BD-IS3		30 V	5.5 V	125 V/ns	CQC CSA UL VDE	5 ns	14-SOIC	4 A	4 A	Surface Mount	125 °C	-40 °C	12 ns	12 ns	6 A		Capacitive Coupling	30 ns							0.295 in	7.5 mm	2
Skyworks Solutions Inc. SI823H4BB-IS1R		30 V	5.5 V	125 V/ns	CQC CSA UL VDE	5 ns	16-SOIC	4 A	4 A	Surface Mount	125 °C	-40 °C			6 A	2500 Vrms	Capacitive Coupling		16-SOIC								2	0.154 in	3.9 mm	30 ns	58 ns	12 ns	12 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 42.39
Digikey	Bulk	1	$ 49.88

Description

General part information

SI823 Series

SI823H2 - Gate Driver Power Management Evaluation Board
