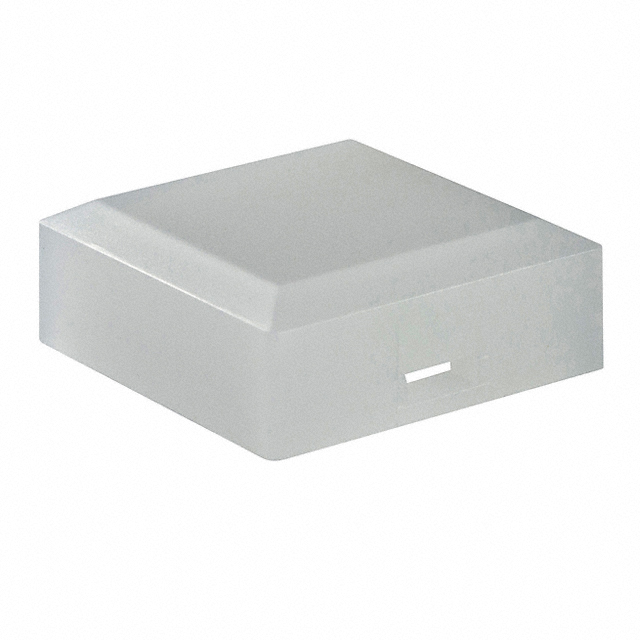

AT3075B

Active

NKK Switches

CAP PUSHBUTTON SQUARE WHITE

Search across all available documentation for this part.

Active

NKK Switches

CAP PUSHBUTTON SQUARE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	AT3075B

Color	White
For Use With/Related Products	UB2 Series
Illumination	Illuminated
Mounting Type	Snap Fit
Shape	Beveled, Square
Size [x]	15 mm
Size [y]	15 mm
Size [z]	5.6 mm
Switch Type	Pushbutton

Part	Mounting Type	For Use With/Related Products	Illumination	Switch Type	Color	Size [z]	Size [x]	Size [y]	Shape
NKK Switches AT3075F	Snap Fit	UB2 Series	Illuminated	Pushbutton	Green	5.6 mm	15 mm	15 mm	Beveled Square
NKK Switches AT3075D	Snap Fit	UB2 Series	Illuminated	Pushbutton	Amber	5.6 mm	15 mm	15 mm	Beveled Square
NKK Switches AT3075C	Snap Fit	UB2 Series	Illuminated	Pushbutton	Red	5.6 mm	15 mm	15 mm	Beveled Square
NKK Switches AT3075B	Snap Fit	UB2 Series	Illuminated	Pushbutton	White	5.6 mm	15 mm	15 mm	Beveled Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Square, Beveled Pushbutton Switch Cap White Snap Fit
