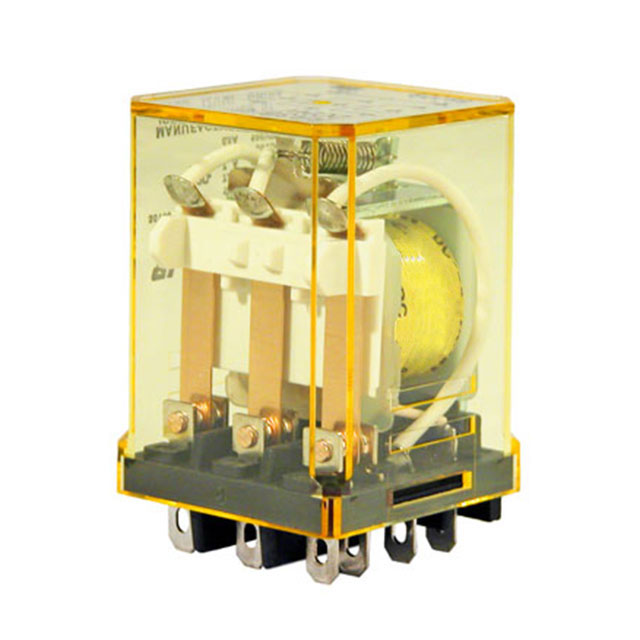

RR3B-ULDC110V

Active

IDEC

POWER RELAY, 3PDT, 110 VDC, 10 A, RR SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RR3B-ULDC110V

Active

IDEC

POWER RELAY, 3PDT, 110 VDC, 10 A, RR SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RR3B-ULDC110V

Approval Agency	CSA, TUV, cURus, CE
Coil Current	13 mA
Coil Resistance	8.46 kOhms
Coil Type	Non Latching
Coil Voltage	110 VDC
Contact Form	3PDT (3 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	10 A
Features	Lighted Indicator
Load - Max Switching	300 W, 2400 VA
Mounting Type	Socketable
Must Operate Voltage	88 VDC
Must Release Voltage	11 VDC
Operate Time	25 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	30 VDC, 240 VAC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

RR3B-U Series

Part	Contact Material	Coil Current	Release Time	Termination Style	Mounting Type	Contact Form	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Operate Time	Contact Rating (Current)	Coil Resistance	Coil Type	Must Release Voltage	Coil Voltage	Approval Agency	Relay Type	Switching Voltage	Features
IDEC RR3B-UAC6V	Silver (Ag)	420 mA	25 ms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	3PDT (3 Form C)	4.8 VAC/DC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	4.9 Ohms	Non Latching	1.8 VAC	6 VAC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC
IDEC RR3B-ULSDC110V	Silver (Ag)	13 mA	25 ms	Quick Connect - 0.187" (4.7mm)	Chassis Mount	3PDT (3 Form C)	88 VDC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	8.46 kOhms	Non Latching	11 VDC	110 VDC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC	Lighted Indicator
IDEC RR3B-ULCAC12V	Silver (Ag)	210 mA	25 ms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	3PDT (3 Form C)	9.6 VAC/DC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	18 Ohms	Non Latching	3.6 VAC	12 VAC/DC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC	Lighted Indicator Test Button
IDEC RR3B-USDC48V	Silver (Ag)	30 mA	25 ms	Quick Connect - 0.187" (4.7mm)	Chassis Mount	3PDT (3 Form C)	38.4 VDC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	1.6 kOhms	Non Latching	4.8 VDC	48 VDC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC
IDEC RR3B-ULAC12V	Silver (Ag)	210 mA	25 ms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	3PDT (3 Form C)	9.6 VAC/DC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	18 Ohms	Non Latching	3.6 VAC	12 VAC/DC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC	Lighted Indicator
IDEC RR3B-UAC12V	Silver (Ag)	210 mA	25 ms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	3PDT (3 Form C)	9.6 VAC/DC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	18 Ohms	Non Latching	3.6 VAC	12 VAC/DC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC
IDEC RR3B-ULAC24V	Silver (Ag)	105 mA	25 ms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	3PDT (3 Form C)	19.2 VAC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	79 Ohms	Non Latching	7.2 VAC	24 VAC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC	Lighted Indicator
IDEC RR3B-UAC110V	Silver (Ag)	23 mA	25 ms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	3PDT (3 Form C)	88 VAC/DC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	1.68 kOhms	Non Latching	33 VAC	110 VAC/DC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC
IDEC RR3B-USDC12V	Silver (Ag)	120 mA	25 ms	Quick Connect - 0.187" (4.7mm)	Chassis Mount	3PDT (3 Form C)	9.6 VDC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	100 Ohms	Non Latching	1.2 VDC	12 VDC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC
IDEC RR3B-ULDC110V	Silver (Ag)	13 mA	25 ms	Plug In Quick Connect - 0.187" (4.7mm)	Socketable	3PDT (3 Form C)	88 VDC	-25 °C	40 °C	300 W 2400 VA	25 ms	10 A	8.46 kOhms	Non Latching	11 VDC	110 VDC	CE CSA cURus TUV	General Purpose	30 VDC 240 VAC	Lighted Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.68
		10	$ 21.56
		25	$ 20.43
		50	$ 19.61
		100	$ 18.83
		250	$ 17.85
		500	$ 17.13
Newark	Each	1	$ 27.36
		5	$ 25.85
		10	$ 22.72
		25	$ 20.40
		50	$ 19.13
		100	$ 18.08
		250	$ 17.04

Description

General part information

RR3B-U Series

General Purpose Relay 3PDT (3 Form C) 110VDC Coil Socketable
