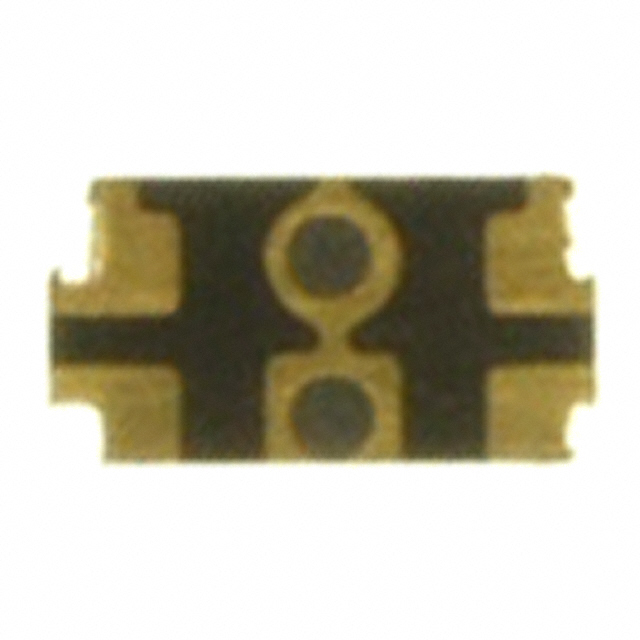

GP2S60B
ActiveSHARP/Socle Technology
PHOTOINTERRUPTER TRANS OUT 4X3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GP2S60B
ActiveSHARP/Socle Technology
PHOTOINTERRUPTER TRANS OUT 4X3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GP2S60B |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-SMD, No Lead |
| Response Time | 20 µs |
| Sensing Distance | 0.7 mm |
| Sensing Distance | 0.028 " |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.87 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.55 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.87 | ||
| 10 | $ 0.67 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.55 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 2000 | $ 0.36 | ||
| 4000 | $ 0.34 | |||
| 6000 | $ 0.32 | |||
| 10000 | $ 0.29 | |||
| 20000 | $ 0.29 | |||
Description
General part information
GP2S60 Series
Reflective Optical Sensor 0.028" (0.7mm) 4-SMD, No Lead
