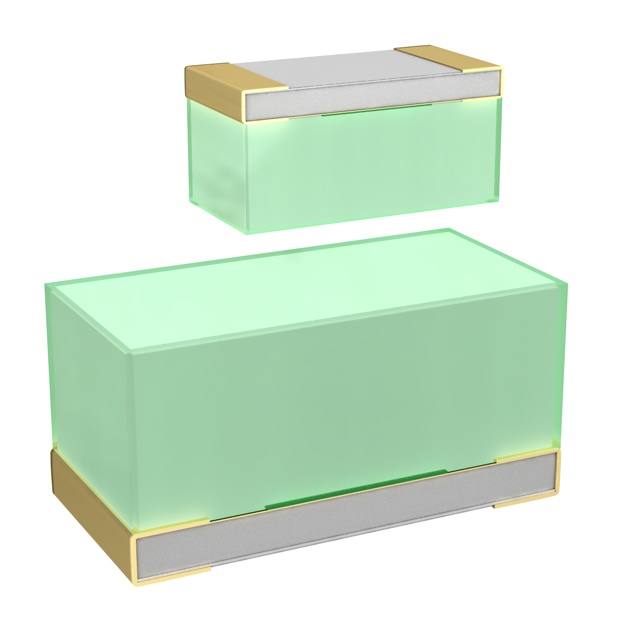

3413.0008.24

Active

SCHURTER Inc.

FUSE CHIP VERY FAST ACTING 0.16A 63V SMD SOLDER PAD 1206 3.2 X 1.6 X 1.6MM EPOXY GLASS T/R CULUS

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CHIP VERY FAST ACTING 0.16A 63V SMD SOLDER PAD 1206 3.2 X 1.6 X 1.6MM EPOXY GLASS T/R CULUS

Technical Specifications

Parameters and characteristics for this part

Specification	3413.0008.24

Breaking Capacity @ Rated Voltage	100 A, 10 A
Current Rating (Amps)	160 mA
DC Cold Resistance	0.51 Ohms
Fuse Type	Board Mount
Melting I²t	0.0015
Mounting Type	Surface Mount
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Response Time	Fast Blow
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	1.6 mm
Size / Dimension [y]	0.063 in
Size / Dimension [z]	0.063 "
Size / Dimension [z]	1.6 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	63 VDC

Part	Breaking Capacity @ Rated Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Fuse Type	Response Time	Package / Case	Voltage Rating - AC	DC Cold Resistance	Melting I²t	Current Rating (Amps)	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type
SCHURTER Inc. 3413.0008.24	10 A 100 A	90 °C	-55 °C	Board Mount	Fast Blow	1206 (3216 Metric)	125 V	0.51 Ohms	0.0015	160 mA	63 VDC	3.2 mm	0.063 "	1.6 mm	0.063 in	1.6 mm	0.126 in	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.14
	Digi-Reel®	1	$ 1.14
	Tape & Reel (TR)	5000	$ 0.44

General part information

160 mA 125 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
