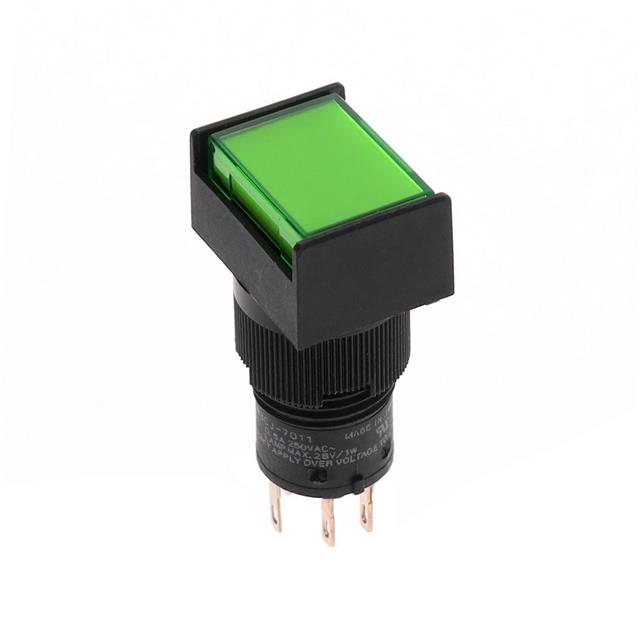

A3CJ-90A1-24EG

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON DPST 1A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON DPST 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	A3CJ-90A1-24EG

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPST-NO/NC
Color - Actuator/Cap	Green
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Mechanical Life	Voltage Rating - AC	Termination Style	Illumination Type, Color	Electrical Life	Ingress Protection	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Switch Function	Actuator Marking	Mounting Type	Actuator Type	Type	Color - Actuator/Cap	Circuit	Illumination Voltage (Nominal)	Voltage Rating - DC	Panel Cutout Dimensions [diameter]
Omron Electronics Inc-EMC Div A3CJ-90A1-05ER	1000000 Cycles	125 V	Solder Lug	LED Red	100000 Cycles	IP40	55 °C	-10 °C	Off-Mom On-Mom	No Marking	Panel Mount Front	Rectangular Button	Illuminated Standard	Red	DPST-NO/NC	5 VDC	30 V	12 mm
Omron Electronics Inc-EMC Div A3CJ-90A1-05EG	1000000 Cycles	125 V	Solder Lug	Green LED	100000 Cycles	IP40	55 °C	-10 °C	Off-Mom On-Mom	No Marking	Panel Mount Front	Rectangular Button	Illuminated Standard	Green	DPST-NO/NC	5 VDC	30 V	12 mm
Omron Electronics Inc-EMC Div A3CJ-90A1-24EG	1000000 Cycles	125 V	Solder Lug	Green LED	100000 Cycles	IP40	55 °C	-10 °C	Off-Mom On-Mom	No Marking	Panel Mount Front	Rectangular Button	Illuminated Standard	Green	DPST-NO/NC	24 V	30 V	12 mm
Omron Electronics Inc-EMC Div A3CJ-90A1-05EY	1000000 Cycles	125 V	Solder Lug	LED Yellow	100000 Cycles	IP40	55 °C	-10 °C	Off-Mom On-Mom	No Marking	Panel Mount Front	Rectangular Button	Illuminated Standard	Yellow	DPST-NO/NC	5 VDC	30 V	12 mm
Omron Electronics Inc-EMC Div A3CJ-90A1-12EY	1000000 Cycles	125 V	Solder Lug	LED Yellow	100000 Cycles	IP40	55 °C	-10 °C	Off-Mom On-Mom	No Marking	Panel Mount Front	Rectangular Button	Illuminated Standard	Yellow	DPST-NO/NC	12 VDC	30 V	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
