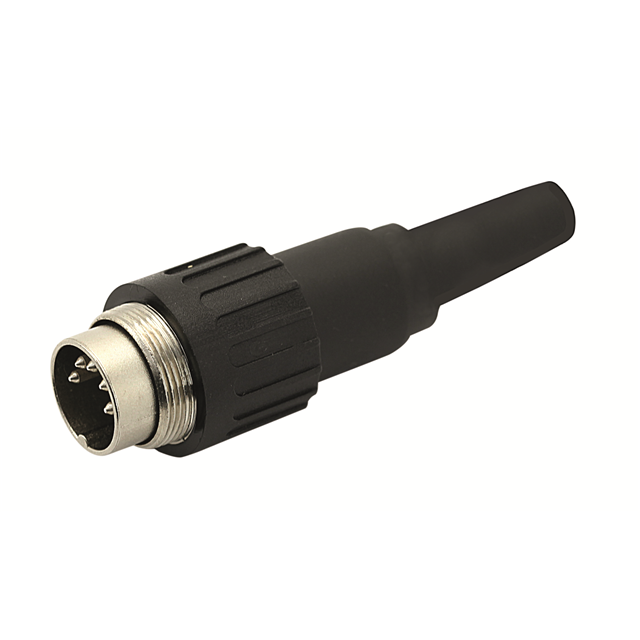

T 3400 038

Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR WITH INTERN

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR WITH INTERN

Technical Specifications

Parameters and characteristics for this part

Specification	T 3400 038

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-6
Shielding	Shielded
Voltage Rating	250 VDC

Part	Shell Finish	Shell Size - Insert	Orientation	Number of Positions	Color	Applications	Ingress Protection	Voltage Rating	Material Flammability Rating	Features	Cable Opening [diameter]	Cable Opening [diameter]	Connector Type	Mounting Type	Shielding	Primary Material	Shell Material	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Insert Material
Amphenol Sine Systems Corp T 3400 038	Nickel	M16-6	Keyed	6	Black Silver	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	IP40	250 VDC	UL94 V-0	Backshell Cable Clamp Strain Relief	4 mm 6 mm	0.157 in 0.236 in	Male Pins Plug	Free Hanging (In-Line)	Shielded	Metal	Zinc Die Cast	Gold	100 °C	-40 °C	7 A	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 11.82

General part information

6 Position Circular Connector Plug, Male Pins Solder Cup
