GCS-080-3.0

Active

European Thermodynamics Ltd

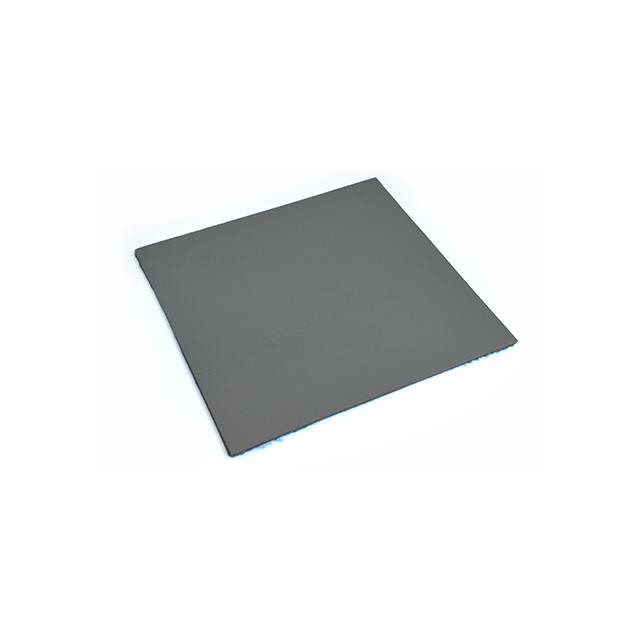

THERM PAD 150MMX150MM GRAY

Search across all available documentation for this part.

Active

European Thermodynamics Ltd

THERM PAD 150MMX150MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Outline [x]	Outline [y]	Color	Thermal Conductivity	Shape	Type	Thickness	Thickness	Material
European Thermodynamics Ltd GCS-080NS-3.0	200 mm	200 mm	Gray	8 W/m-K	Square	Interface Pad Sheet	3 mm	0.118 in	Non-Silicone
European Thermodynamics Ltd GCS-080-1.0	150 mm	150 mm	Gray	8 W/m-K	Square	Interface Pad Sheet	1 mm	0.0394 in	Silicone
European Thermodynamics Ltd GCS-080-3.0	150 mm	150 mm	Gray	8 W/m-K	Square	Interface Pad Sheet	3 mm	0.118 in	Silicone
European Thermodynamics Ltd GCS-080NS-2.0	200 mm	200 mm	Gray	8 W/m-K	Square	Interface Pad Sheet	2 mm	0.079 in	Non-Silicone
European Thermodynamics Ltd GCS-080NS-1.0	200 mm	200 mm	Gray	8 W/m-K	Square	Interface Pad Sheet	1 mm	0.0394 in	Non-Silicone
European Thermodynamics Ltd GCS-080-1.5	150 mm	150 mm	Gray	8 W/m-K	Square	Interface Pad Sheet	1.5 mm	0.0591 "	Silicone
European Thermodynamics Ltd GCS-080-0.5	150 mm	150 mm	Gray	8 W/m-K	Square	Interface Pad Sheet	0.5 mm	0.0197 in	Silicone

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Gray 150.00mm x 150.00mm Square
