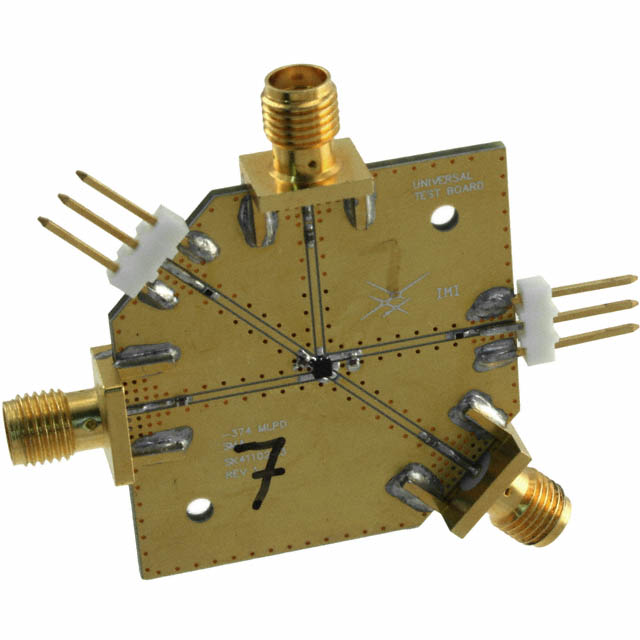

SKY13348-374LF-EVB

Active

Skyworks Solutions Inc.

EVAL BOARD FOR SKY13348-374LF

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

EVAL BOARD FOR SKY13348-374LF

Technical Specifications

Parameters and characteristics for this part

Specification	SKY13348-374LF-EVB

For Use With/Related Products	SKY13348-374LF
Frequency [Max]	6 GHz
Frequency [Min]	500 MHz
Supplied Contents	Board(s)
Type	Switch, SPDT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Isolation	P1dB	RF Type	Frequency Range [Max]	Frequency Range [Min]	Test Frequency	Insertion Loss	Circuit	IIP3	Mounting Type	Supplier Device Package	Package / Case	Impedance	Supplied Contents	Frequency [Max]	Frequency [Min]	Type	For Use With/Related Products
Skyworks Solutions Inc. SKY13348-374LF	85 °C	-40 °C	Absorptive	24 dB	37 dBm	802.16 WiMAX	6 GHz	500 MHz	5.85 GHz	1 dB	SPDT	57 dBm	Surface Mount	6-MLPD (1.5x1.5)	6-XFDFN Exposed Pad	50 Ohms
Skyworks Solutions Inc. SKY13348-374LF-EVB																	Board(s)	6 GHz	500 MHz	Switch SPDT	SKY13348-374LF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.24

General part information

- SKY13348-374LF Switch, SPDT 500MHz ~ 6GHz Evaluation Board

Technical documentation and resources

No documents available
