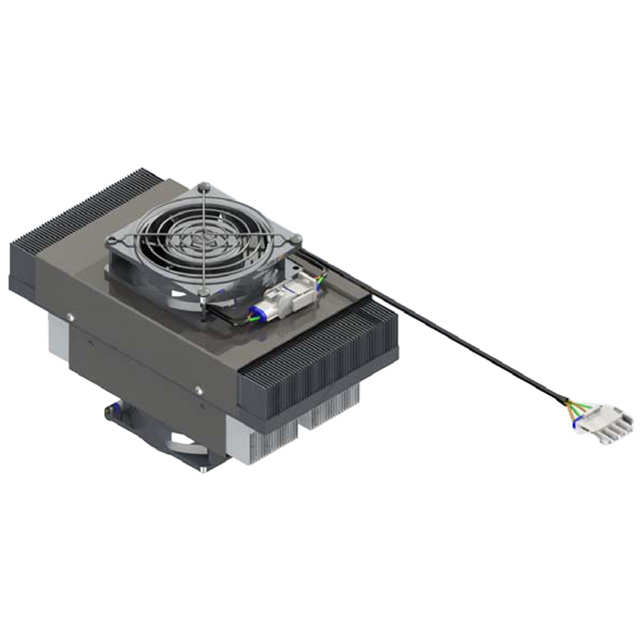

CTA230-0001-01
ActiveMarlow Industries, Inc.
THERMOELECT ASSY AIR-AIR 72W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CTA230-0001-01
ActiveMarlow Industries, Inc.
THERMOELECT ASSY AIR-AIR 72W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTA230-0001-01 |
|---|---|
| Current | 7.5 A |
| Dimensions - Overall [x] | 230 mm |
| Dimensions - Overall [y] | 120 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 72 W |
| Voltage | 12 V |
| Weight | 2.2 kg |
| Weight | 4.9 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2 | $ 497.98 | |
Description
General part information
CTA230 Series
Air to Air Thermoelectric Assembly 72 W
