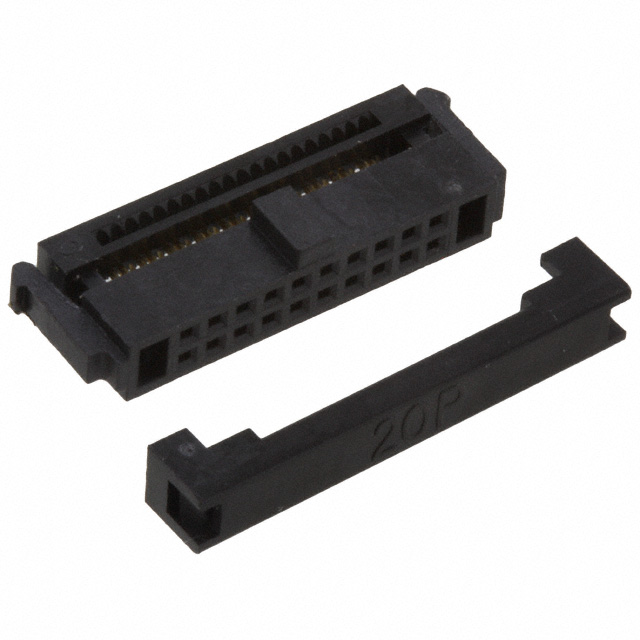

3230-20-0103-00

Active

CnC Tech, LLC

CONN SOCKET 20POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 20POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3230-20-0103-00

Cable Termination	IDC
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Wire Type	Ribbon Cable

Part	Contact Finish Thickness	Contact Type	Contact Finish	Number of Rows	Connector Type	Number of Positions	Features	Mounting Type	Wire Type	Pitch [x]	Pitch [x]	Cable Termination	Row Spacing	Row Spacing
CnC Tech, LLC 3230-20-0103-00	Flash	Female Socket	Gold	2	Socket	20	Feed Through Polarizing Key Strain Relief	Free Hanging (In-Line)	Ribbon Cable	0.05 in	1.27 mm	IDC	1.27 mm	0.05 in
CnC Tech, LLC 3230-20-0101-00	Flash	Female Socket	Gold	2	Socket	20	Feed Through	Free Hanging (In-Line)	Ribbon Cable	0.05 in	1.27 mm	IDC	1.27 mm	0.05 in
CnC Tech, LLC 3230-20-0104-00	Flash	Female Socket	Gold	2	Socket	20	Feed Through Strain Relief	Free Hanging (In-Line)	Ribbon Cable	0.05 in	1.27 mm	IDC	1.27 mm	0.05 in
CnC Tech, LLC 3230-20-0102-00	Flash	Female Socket	Gold	2	Socket	20	Feed Through Polarizing Key	Free Hanging (In-Line)	Ribbon Cable	0.05 in	1.27 mm	IDC	1.27 mm	0.05 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Socket Connector IDC Gold
