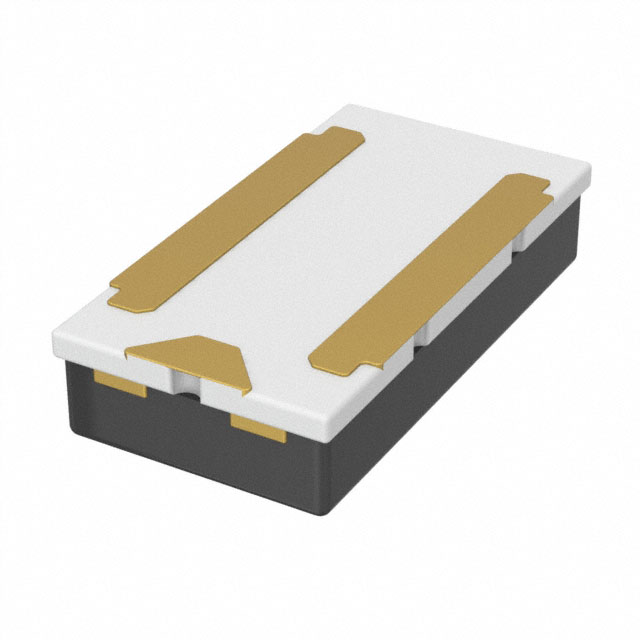

FR-9550-30A-C01-B
ObsoleteDelta Electronics/Cyntec
SMD FUSE RATED CURRENT 30A/62VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FR-9550-30A-C01-B
ObsoleteDelta Electronics/Cyntec
SMD FUSE RATED CURRENT 30A/62VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FR-9550-30A-C01-B |
|---|---|
| Applications | Battery Protection |
| Approval Agency | TUV, UL |
| Breaking Capacity @ Rated Voltage | 80 A |
| Current Rating (Amps) | 30 A |
| Features | Triggerable |
| Features [Max] | 6.6 V |
| Features [Min] | 4 V |
| Fuse Type | Board Mount |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | Nonstandard SMD |
| Response Time | Fast Blow |
| Size / Dimension | 9.5 mm, 2.3 mm, 5 mm |
| Size / Dimension | 0.091 ", 0.374 ", 0.197 " |
| Voltage Rating - DC | 62 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.38 | |
| 5 | $ 7.12 | |||
| 10 | $ 6.85 | |||
| 50 | $ 5.27 | |||
| 100 | $ 4.48 | |||
| 250 | $ 4.22 | |||
| 500 | $ 3.69 | |||
| Digi-Reel® | 1 | $ 7.38 | ||
| 5 | $ 7.12 | |||
| 10 | $ 6.85 | |||
| 50 | $ 5.27 | |||
| 100 | $ 4.48 | |||
| 250 | $ 4.22 | |||
| 500 | $ 3.69 | |||
| Tape & Reel (TR) | 1000 | $ 3.56 | ||
Description
General part information
FR-9550 Series
30A 62 VDC Fuse Board Mount Surface Mount
