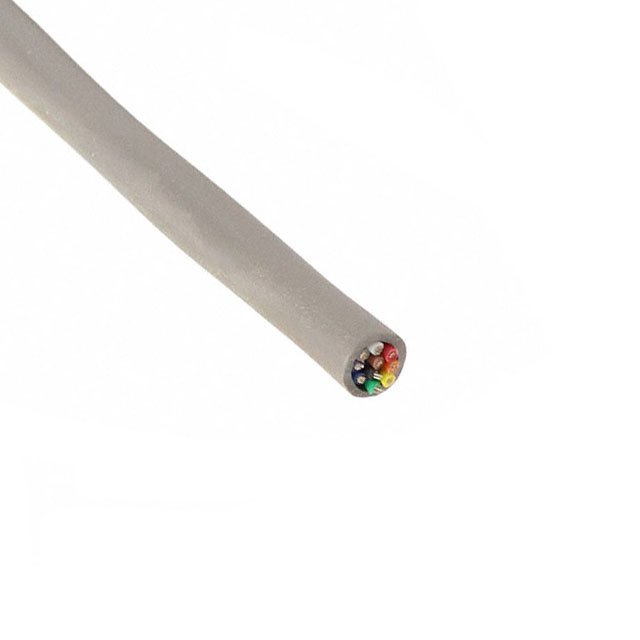

M38910 SL001

Active

ALPHA WIRE

CABLE 10COND 24AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 24AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	M38910 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.243 "
Jacket (Insulation) Diameter [diameter]	6.17 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Voltage	300 V
Wire Gauge	24 AWG

Part	Cable Type	Length	Length	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Insulation	Voltage	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE M38910 SL001	Multi-Conductor	1000 ft	304.8 m	10	0.243 "	6.17 mm	24 AWG	Poly-Vinyl Chloride (PVC)	300 V	Slate	32 AWG	7	Copper Tinned	Poly-Vinyl Chloride (PVC)	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Slate 24 AWG 1000.0' (304.8m)
