Q-040710005084i
ActiveAmphenol Custom Cable

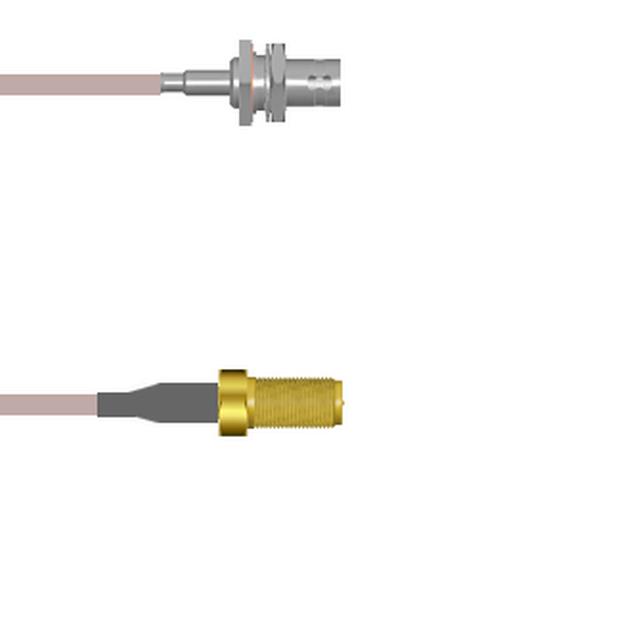

COAX CBL RP-SMA TO BNC 7'
Deep-Dive with AI
Search across all available documentation for this part.
Q-040710005084i
ActiveAmphenol Custom Cable
COAX CBL RP-SMA TO BNC 7'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-040710005084i |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 84 in |
| Length | 2.1 m |
| Length | 7 ft |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 85.66 | |
| 25 | $ 83.97 | |||
| 50 | $ 82.28 | |||
| 100 | $ 80.60 | |||
| 250 | $ 78.91 | |||
Description
General part information
Q-040710 Series
Cable Assembly Coaxial RP-SMA to BNC RG-316 84.0" (2.1m) 7.0'
Documents
Technical documentation and resources
No documents available
