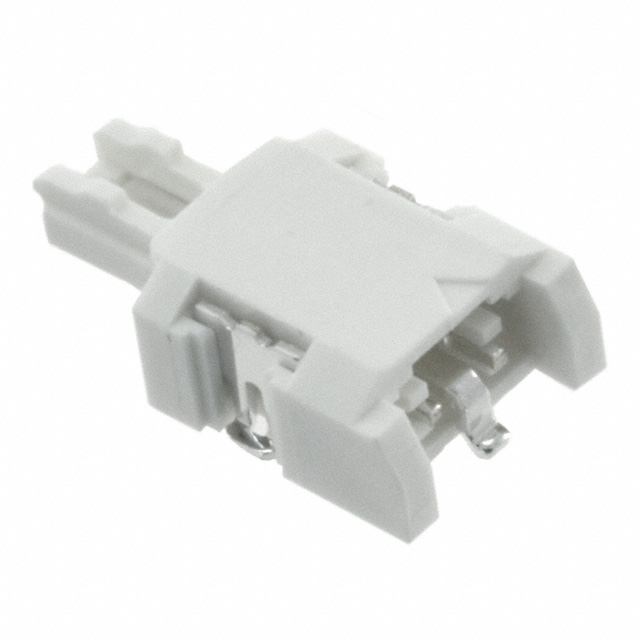

01P-LEBSS-TF(LF)(SN)
ActiveJST Sales America Inc.
CONN SSL PLUG 1POS SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
01P-LEBSS-TF(LF)(SN)
ActiveJST Sales America Inc.
CONN SSL PLUG 1POS SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 01P-LEBSS-TF(LF)(SN) |
|---|---|
| Connector Type | Plug |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Features | Solder Retention |
| Housing Color | White |
| Housing Material | Polyamide (PA9T), Nylon 9T |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| Digi-Reel® | 1 | $ 0.48 | ||
| Tape & Reel (TR) | 2000 | $ 0.25 | ||
Description
General part information
01P-LEBS Series
SSL Connector 1 Position Plug Board to Board Solder
