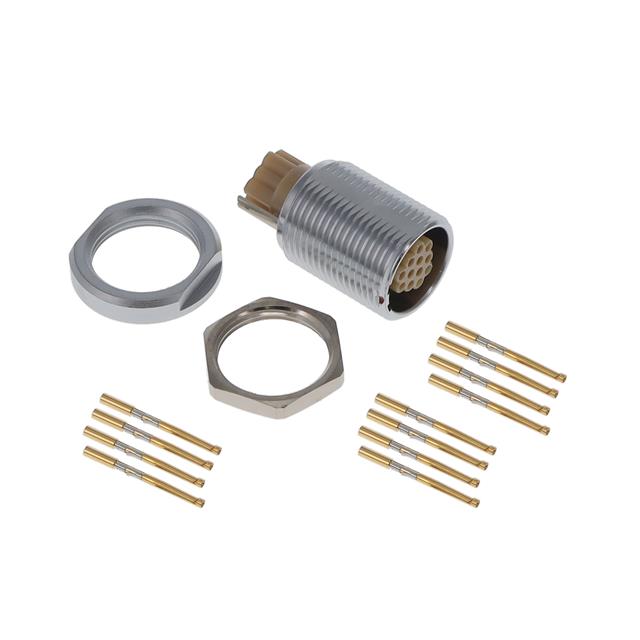

G52LAC-P12NFG2-000L

Active

ODU

PANEL RECEPTACLE, STY G5, SER L,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIEC 60601-1 MINI-SNAP Features

G52LAC-P12NFG2-000L

Active

ODU

PANEL RECEPTACLE, STY G5, SER L,

Deep-Dive with AI

DocumentsIEC 60601-1 MINI-SNAP Features

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G52LAC-P12NFG2-000L

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Medical (IEC 60601 (2 MOOP/2 MOPP))
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	12
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2
Shielding	Shielded
Termination	Crimp
Voltage Rating	48 VDC

G52LAC-P Series

Part	Fastening Type	Insert Material	Shell Material	Primary Material	Shielding	Applications	Mounting Type	Contact Finish - Mating	Features	Color	Connector Type	Current Rating (Amps)	Contact Material	Number of Positions	Mounting Feature	Orientation	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shell Size - Insert	Termination	Shell Finish	Number of Positions
ODU G52LAC-P08QJ00-0000	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Panel Mount Through Hole	Gold	Ground	Silver	Receptacle Female Sockets	7.5 A	Brass	8	Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	500 V	2	Solder	Chrome over Nickel
ODU G52LAC-P03MSN0-0000	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Unshielded	Industrial Medical Military Testing Equipment & Measurement		Gold	Ground	Silver	Receptacle Female Sockets	16 A	Brass		Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	800 V	2		Chrome over Nickel
ODU G52LAC-P16QF00-A000	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Panel Mount Through Hole	Gold	Ground	Silver	Receptacle Female Sockets	6 A	Brass		Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	366 V	2	Solder	Chrome over Nickel	16
ODU G52LAC-P03LSN0-0000	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Unshielded	Industrial Medical Military Testing Equipment & Measurement		Gold	Ground	Silver	Receptacle Female Sockets	16 A	Brass		Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	800 V	2		Chrome over Nickel
ODU G52LAC-P12NFG2-000L	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Shielded	Industrial Medical Military Testing Equipment & Measurement		Gold	Medical (IEC 60601 (2 MOOP/2 MOPP))	Silver	Receptacle Female Sockets	7.5 A	Brass	12	Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	48 VDC	2	Crimp	Chrome over Nickel
ODU G52LAC-P02QT00-0000	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Panel Mount Through Hole	Gold	Ground	Silver	Receptacle Female Sockets	18 A	Brass	2	Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	700 VDC	2	Solder	Chrome over Nickel
ODU G52LAC-P19LFG0-0000	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Unshielded	Industrial Medical Military Testing Equipment & Measurement		Gold	Ground	Silver	Receptacle Female Sockets	7.5 A	Brass	19	Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	300 VDC	2		Chrome over Nickel
ODU G52LAC-P02LTS0-0000	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Unshielded	Industrial Medical Military Testing Equipment & Measurement		Gold	Ground	Silver	Receptacle Female Sockets	24 A	Brass	2	Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	600 V	2		Chrome over Nickel
ODU G52LAC-P04LPH0-0000	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Unshielded	Industrial Medical Military Testing Equipment & Measurement		Gold	Ground	Silver	Receptacle Female Sockets	12 A	Brass	4	Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	650 V	2		Chrome over Nickel
ODU G52LAC-P10LJG0-0000	Push-Pull	Polyetheretherketone (PEEK)	Brass	Metal	Unshielded	Industrial Medical Military Testing Equipment & Measurement		Gold	Ground	Silver	Receptacle Female Sockets	7.5 A	Brass	10	Bulkhead - Front or Rear Side Nut	A	IP50	-40 °C	120 °C	500 V	2		Chrome over Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 104.84
		10	$ 96.21
		100	$ 84.49

Description

General part information

G52LAC-P Series

12 Position Circular Connector Receptacle, Female Sockets Crimp
