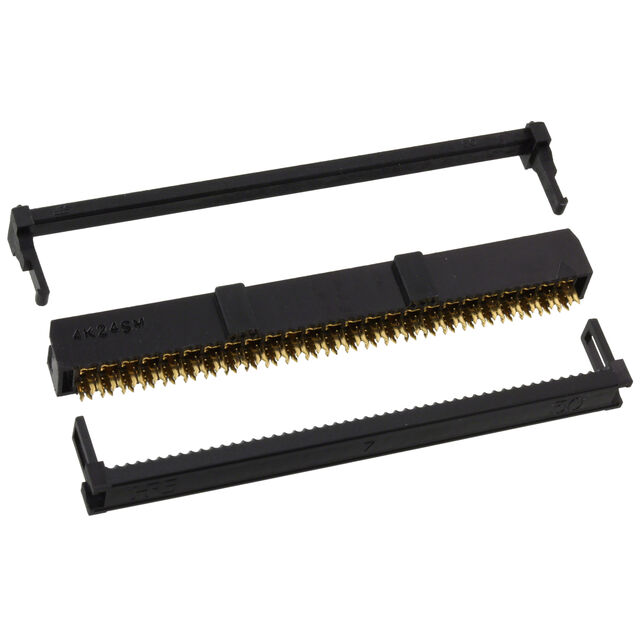

HIF3A-50D-2.54R

Active

Hirose Electric USA, Inc.

HIGH PERFORMANCE RIBBON CABLE CONNECTORS (COMPLIANT WITH MIL) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3A-50D-2.54R

Active

Hirose Electric USA, Inc.

HIGH PERFORMANCE RIBBON CABLE CONNECTORS (COMPLIANT WITH MIL) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3A-50D-2.54R

Cable Termination	IDC
Color	Black
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	50
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

HIF3A Series

Part	Pitch [x]	Pitch [x]	Cable Termination	Number of Positions	Wire Gauge	Color	Contact Type	Connector Type	Wire Type	Fastening Type	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Row Spacing [x]	Row Spacing	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Pin or Socket
Hirose Electric USA, Inc. HIF3A-10D-2.54R	2.54 mm	0.1 in	IDC	10	28 AWG	Black	Female Socket	Socket	Ribbon Cable	Latch Holder	Gold	Polarizing Key Strain Relief	8 çin	0.203 çm	2	0.1 in	2.54 mm	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. HIF3A-3236SCFC											Gold								32 AWG	36 AWG	Crimp	Socket
Hirose Electric USA, Inc. HIF3A-26D-2.54R(01)	2.54 mm	0.1 in	IDC	26	28 AWG	Black	Female Socket	Socket	Ribbon Cable	Latch Holder	Gold	Polarizing Key Strain Relief	8 çin	0.203 çm	2	0.1 in	2.54 mm	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. HIF3A-50D-2.54R	2.54 mm	0.1 in	IDC	50	28 AWG	Black	Female Socket	Socket	Ribbon Cable	Latch Holder	Gold	Polarizing Key Strain Relief	8 çin	0.203 çm	2	0.1 in	2.54 mm	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. HIF3A-26D-2.54R	2.54 mm	0.1 in	IDC	26	28 AWG	Black	Female Socket	Socket	Ribbon Cable	Latch Holder	Gold	Polarizing Key Strain Relief	8 çin	0.203 çm	2	0.1 in	2.54 mm	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. HIF3A-60D-2.54R	2.54 mm	0.1 in	IDC	60	28 AWG	Black	Female Socket	Socket	Ribbon Cable	Latch Holder	Gold	Polarizing Key Strain Relief	8 çin	0.203 çm	2	0.1 in	2.54 mm	Free Hanging (In-Line) Right Angle
Hirose Electric USA, Inc. HIF3A-34D-2.54R	2.54 mm	0.1 in	IDC	34	28 AWG	Black	Female Socket	Socket	Ribbon Cable	Latch Holder	Gold	Polarizing Key Strain Relief	8 çin	0.203 çm	2	0.1 in	2.54 mm	Free Hanging (In-Line) Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.51
		10	$ 16.91
		25	$ 16.03
		40	$ 15.80
		80	$ 13.94
		240	$ 13.01
		440	$ 12.73
Newark	Each	1	$ 20.80
		240	$ 18.40

Description

General part information

HIF3A Series

50 Position Rectangular Socket Connector IDC Gold 28 AWG
