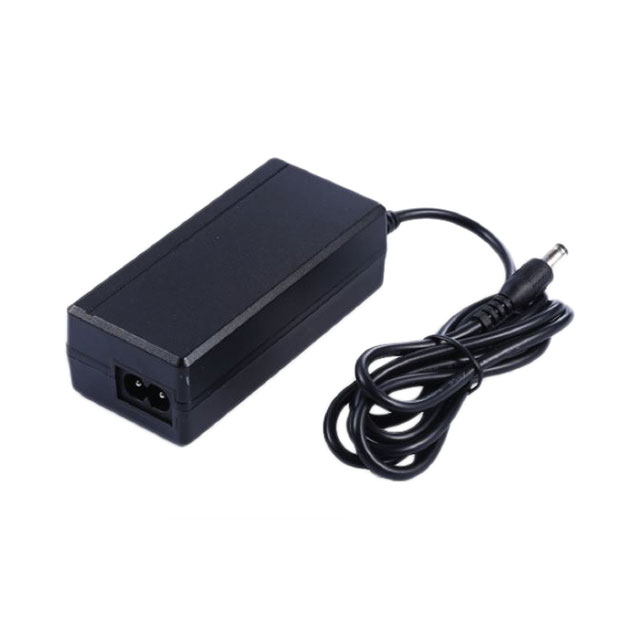

L6R30D-300-C8

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 30V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R30D-300-C8

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 30V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L6R30D-300-C8

Applications	ITE (Commercial)
Approval Agency	cUL, FCC, UL
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	30 W
Region Utilized	International
Size / Dimension [x]	91.9 mm
Size / Dimension [x]	3.62 in
Size / Dimension [y]	1.79 "
Size / Dimension [y]	45.4 mm
Size / Dimension [z]	1.08 "
Size / Dimension [z]	27.5 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	30 VDC
Weight	0.309 lb
Weight	140 g

L6R30 Series

Part	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Input Connector	Standard Number	Approval Agency	Output Connector [diameter]	Output Connector [x]	Output Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Form	Applications	Input Type	Region Utilized	No Load Power Consumption	Cord Length	Cord Length	Operating Temperature [Max]	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Polarization	Weight	Weight
Tri-Mag, LLC L6R30-120	90 VAC	264 VAC	12 V	NEMA 1-15P	62368-1	cUL FCC UL	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	71.1 mm	33 mm	2.8 in	1.3 "	1.7 "	43.2 mm	Wall Mount (Class II)	ITE (Commercial)	Fixed Blade	North America	100 mW	1.5 m	59 in	40 °C	30 W	2.5 A	Level VI
Tri-Mag, LLC L6R30D-120-C8	90 VAC	264 VAC	12 V	IEC 320-C8	62368-1	cUL FCC UL	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	91.9 mm	27.5 mm	3.62 in	1.08 "	1.79 "	45.4 mm	Desktop (Class II)	ITE (Commercial)	Cord	International	100 mW	1.5 m	59 in	40 °C	30 W	2.5 A	Level VI	Positive Center	0.309 lb	140 g
Tri-Mag, LLC L6R30D-300-C8	90 VAC	264 VAC	30 VDC	IEC 320-C8	62368-1	cUL FCC UL	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	91.9 mm	27.5 mm	3.62 in	1.08 "	1.79 "	45.4 mm	Desktop (Class II)	ITE (Commercial)	Cord	International	100 mW	1.5 m	59 in	40 °C	30 W	1 A	Level VI	Positive Center	0.309 lb	140 g
Tri-Mag, LLC L6R30-300	90 VAC	264 VAC	30 VDC	NEMA 1-15P	62368-1	cUL FCC UL	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	71.1 mm	33 mm	2.8 in	1.3 "	1.7 "	43.2 mm	Wall Mount (Class II)	ITE (Commercial)	Fixed Blade	North America	100 mW	1.5 m	59 in	40 °C	30 W	1 A	Level VI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	540	$ 8.33

Description

General part information

L6R30 Series

30V 30 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
