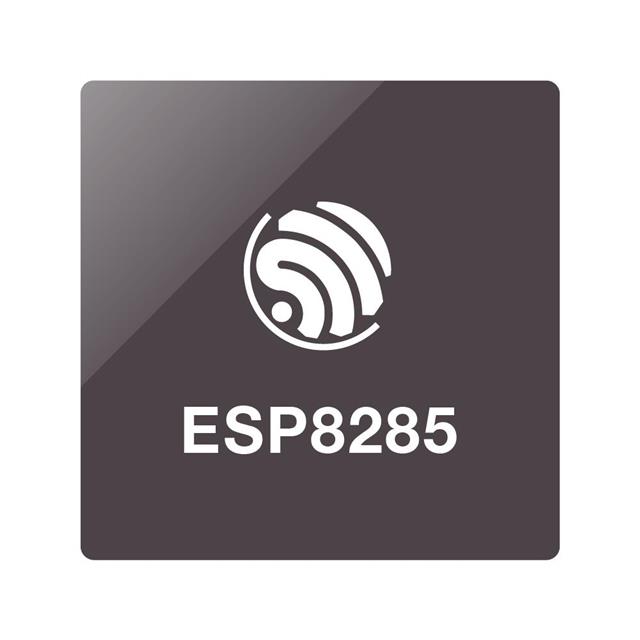

ESP8285H16

Active

Espressif Systems

IC RF TXRX+MCU WIFI 32QFN

Search across all available documentation for this part.

Active

Espressif Systems

IC RF TXRX+MCU WIFI 32QFN

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Power - Output	GPIO	Supplier Device Package	Serial Interfaces	Current - Transmitting [Min]	Current - Transmitting [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Sensitivity	Frequency [Min]	Frequency [Max]	Modulation	Data Rate (Max)	Current - Receiving [Max]	Current - Receiving [Min]	Protocol	Mounting Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate (Max) [Max]	Frequency
Espressif Systems ESP8285N08	Bluetooth Cellular WiFi	20 dBm	17	32-QFN (5x5)	ADC GPIO I2C I2S PWM SDIO SPI UART	142 mA	197 mA	85 °C	-40 °C	TxRx + MCU	-97 dBm	2.4 GHz	2.483 GHz	64QAM BPSK CCK DSSS OFDM	72.2 Mbps	73 mA	72 mA	802.11b/g/n	Surface Mount	32-VFQFN Exposed Pad	2.7 V	3.6 V
Espressif Systems ESP8285H16	WiFi	20 dBm	8	32-QFN (5x5)	I2C I2S SPI UART	120 mA	170 mA			TxRx + MCU	-91 dBm					56 mA	50 mA	802.11b/g/n	Surface Mount	32-VFQFN Exposed Pad	2.7 V	3.6 V	54 Mbps	2.4 GHz
Espressif Systems ESP8285H08	Bluetooth Cellular WiFi	20 dBm	17	32-QFN (5x5)	ADC GPIO I2C I2S PWM SDIO SPI UART	142 mA	197 mA	105 ░C	-40 °C	TxRx + MCU	-97 dBm	2.412 GHz	2.483 GHz	64QAM BPSK CCK DSSS OFDM	72.2 Mbps	73 mA	72 mA	802.11b/g/n	Surface Mount	32-VFQFN Exposed Pad	2.7 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.05
	Digi-Reel®	1	$ 1.05
	Tape & Reel (TR)	5000	$ 1.05

General part information

IC RF TxRx + MCU WiFi 802.11b/g/n 2.4GHz 32-VFQFN Exposed Pad
