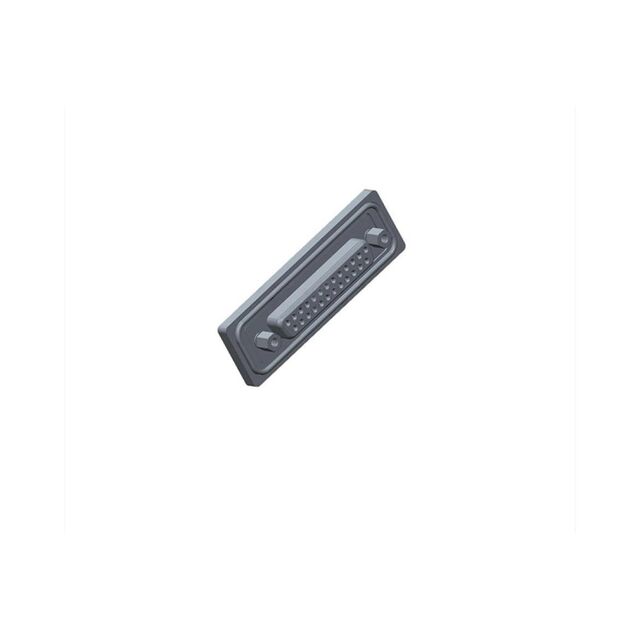

SDB-25PFFS-SL8001
ActiveAmphenol LTW
CONN D-SUB RCPT 25POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDB-25PFFS-SL8001
ActiveAmphenol LTW
CONN D-SUB RCPT 25POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDB-25PFFS-SL8001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.20 | |
| 10 | $ 13.47 | |||
| 30 | $ 12.95 | |||
| 50 | $ 12.44 | |||
| 100 | $ 11.74 | |||
| 250 | $ 10.71 | |||
| 500 | $ 10.02 | |||
| 1000 | $ 9.19 | |||
Description
General part information
SDB-25PFFS Series
25 Position D-Sub Receptacle, Female Sockets Connector
