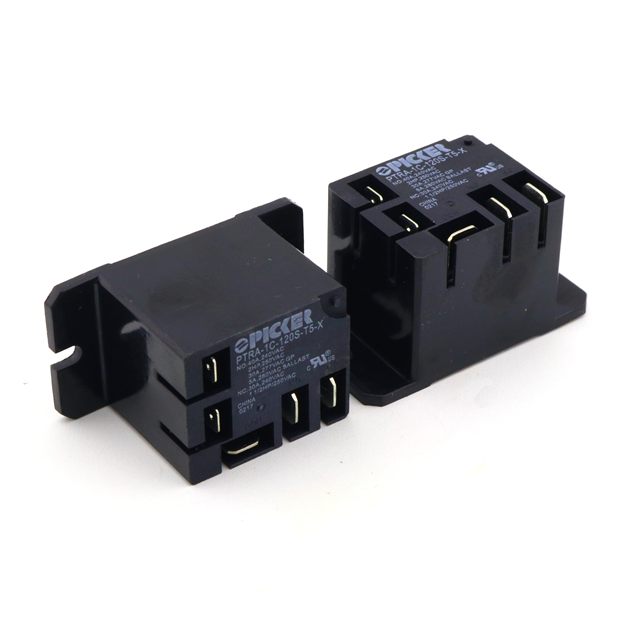

PTRA-1C-120S-T5-X
ActivePicker Components
RELAY GEN PURPOSE SPDT 40A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTRA-1C-120S-T5-X
ActivePicker Components
RELAY GEN PURPOSE SPDT 40A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTRA-1C-120S-T5-X |
|---|---|
| Approval Agency | cUL, cURus, UL |
| Coil Current | 16.6 mA |
| Coil Insulation | Class F |
| Coil Resistance | 3.04 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 40 A |
| Load - Max Switching | 4400 W, 12000 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 90 VAC |
| Must Release Voltage | 36 VAC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 110 VDC, 300 VAC |
| Termination Style | Quick Connect - 0.187"/0.250" |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.41 | |
| 15 | $ 4.14 | |||
| 30 | $ 3.68 | |||
| 60 | $ 3.49 | |||
| 105 | $ 3.31 | |||
| 255 | $ 2.94 | |||
| 510 | $ 2.76 | |||
| 1005 | $ 2.57 | |||
Description
General part information
PTRA-1C Series
General Purpose Relay SPDT (1 Form C) 120VAC Coil Chassis Mount
