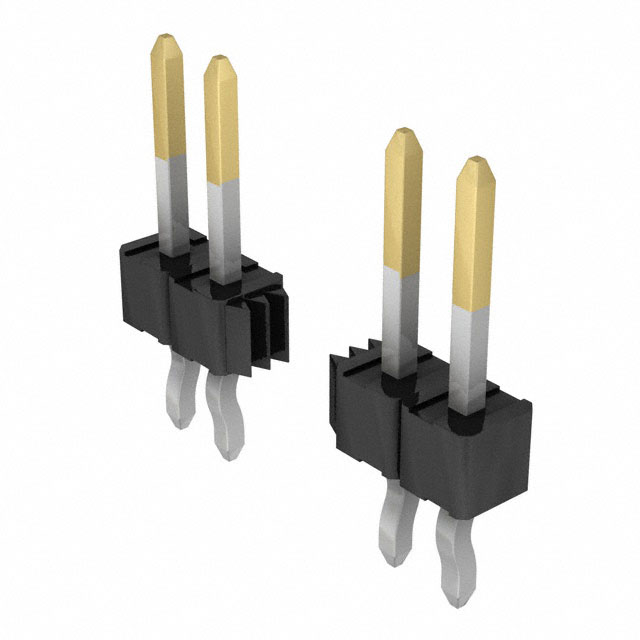

0022303061

Active

Molex

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022303061

Active

Molex

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022303061

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.09 in
Insulation Height	2.29 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded [custom]	5
Number of Rows	1
Overall Contact Length	0.465 in
Overall Contact Length	11.81 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Kinked Pin, Solder

002230 Series

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Applications	Connector Type	Insulation Color	Fastening Type	Number of Positions Loaded	Shrouding	Style	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Finish - Post	Contact Shape	Contact Length - Mating	Contact Length - Mating	Termination	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Overall Contact Length [x]	Overall Contact Length [x]	Material Flammability Rating	Insulation Material	Number of Positions	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Finish - Mating	Number of Positions Loaded [custom]	Contact Length - Mating [x]
Molex 0022303053	Through Hole	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Breakaway Header	Black	Push-Pull	All	Unshrouded	Board to Board Cable	0.135 in	3.43 mm	0.09 in	2.29 mm	Tin	Square	0.405 in	10.29 mm	Kinked Pin Solder	1	2.54 çm	100 çin	2.54 µm	100 µin	Male Pin	0.63 "	16 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)
Molex 0022303063	Through Hole	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Breakaway Header	Black	Push-Pull	All	Unshrouded	Board to Board Cable	0.135 in	3.43 mm	0.09 in	2.29 mm	Tin	Square	0.405 in	10.29 mm	Kinked Pin Solder	1	2.54 çm	100 çin	2.54 µm	100 µin	Male Pin	0.63 "	16 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	6
Molex 0022303364	Through Hole	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Breakaway Header	Black	Push-Pull		Unshrouded	Board to Board Cable	0.12 in	3.05 mm	0.09 in	2.29 mm	Tin	Square	0.32 in	8.13 mm	Solder	1	2.54 çm	100 çin	2.54 µm	100 µin	Male Pin			UL94 V-0	Glass Filled Nylon Polyamide (PA)	36	13.46 mm	0.53 in	35
Molex 0022303043	Through Hole	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Breakaway Header	Black	Push-Pull	All	Unshrouded	Board to Board Cable	0.135 in	3.43 mm	0.09 in	2.29 mm	Tin	Square	0.405 in	10.29 mm	Kinked Pin Solder	1	2.54 çm	100 çin	2.54 µm	100 µin	Male Pin	0.63 "	16 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	4
Molex 0022303061	Through Hole	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Breakaway Header	Black	Push-Pull		Unshrouded	Board to Board Cable	0.135 in	3.43 mm	0.09 in	2.29 mm	Tin	Square		6.1 mm	Kinked Pin Solder	1	0.38 µm	15 µin	2.54 µm	100 µin	Male Pin			UL94 V-0	Glass Filled Nylon Polyamide (PA)	6	11.81 mm	0.465 in		Gold	5	0.24 in
Molex 0022303363	Through Hole	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Breakaway Header	Black	Push-Pull	All	Unshrouded	Board to Board Cable	0.135 in	3.43 mm	0.09 in	2.29 mm	Tin	Square	0.405 in	10.29 mm	Kinked Pin Solder	1	2.54 çm	100 çin	2.54 µm	100 µin	Male Pin	0.63 "	16 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	36
Molex 0022303107	Through Hole	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Breakaway Header	Black	Push-Pull		Unshrouded	Board to Board Cable	0.125 in	3.18 mm	0.09 in	2.29 mm	Tin	Square	0.455 in	11.56 mm	Solder	1	2.54 çm	100 çin	2.54 µm	100 µin	Male Pin			UL94 V-0	Glass Filled Nylon Polyamide (PA)	10	11.56 mm	0.455 in	8
Molex 0022303034	Through Hole	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Breakaway Header	Black	Push-Pull		Unshrouded	Board to Board Cable	0.12 in	3.05 mm	0.09 in	2.29 mm	Tin	Square	0.32 in	8.13 mm	Solder	1	2.54 çm	100 çin	2.54 µm	100 µin	Male Pin			UL94 V-0	Glass Filled Nylon Polyamide (PA)		13.46 mm	0.53 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12000	$ 12500.00

Description

General part information

002230 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)
