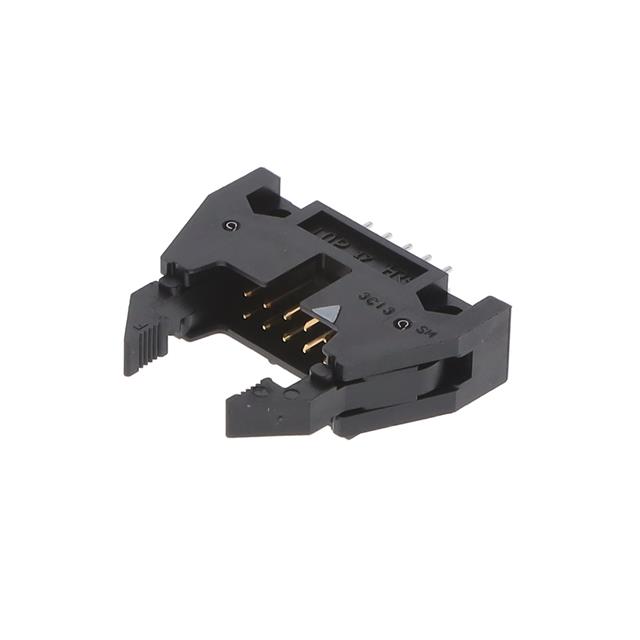

HIF3BDF-10PA-2.54DSA(63)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3BDF-10PA-2.54DSA(63)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3BDF-10PA-2.54DSA(63)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.701 "
Insulation Height	17.8 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

HIF3BDF Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Post	Mounting Type	Insulation Material	Number of Positions Loaded	Contact Shape	Connector Type	Number of Positions	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Voltage Rating	Insulation Height	Insulation Height	Material Flammability Rating	Contact Type	Features	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Number of Rows	Fastening Type	Contact Material	Contact Finish - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length
Hirose Electric USA, Inc. HIF3BDF-10PA-2.54DSA(63)	0.203 Ám	8 Áin	Board to Cable/Wire	2 çm	78.7 çin	Varies by Wire Gauge	Tin	Through Hole	Polybutylene Terephthalate (PBT)	All	Square	Header	10	0.1 in	2.54 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	200 V	0.701 "	17.8 mm	UL94 V-0	Male Pin	Keying Slot	Black	85 °C	-55 °C	0.13 in	3.3 mm	2	Latch Lock/Eject Hooks	Brass	Gold	Solder
Hirose Electric USA, Inc. HIF3BDF-10PA-2.54DSA(71)	0.203 Ám	8 Áin	Board to Cable/Wire	2 çm	78.7 çin		Tin	Through Hole	Polybutylene Terephthalate (PBT)	All	Square	Header	10	0.1 in	2.54 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	200 V	0.701 "	17.8 mm	UL94 V-0	Male Pin		Black	85 °C	-55 °C	0.13 in	3.3 mm	2	Latch Lock/Eject Hooks	Brass	Gold	Solder	6 mm	0.236 in	16.7 mm	0.657 in
Hirose Electric USA, Inc. HIF3BDF-10PA-2.54DS(63)	0.203 Ám	8 Áin	Board to Cable/Wire	2 çm	78.7 çin	Varies by Wire Gauge	Tin	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	All	Square	Header	10	0.1 in	2.54 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	200 V	0.335 "	8.51 mm	UL94 V-0	Male Pin		Black	85 °C	-55 °C	0.118 in	3 mm	2	Latch Lock/Eject Hooks	Brass	Gold	Solder
Hirose Electric USA, Inc. HIF3BDF-10PA-2.54WB(63)	0.203 Ám	8 Áin	Board to Cable/Wire	2 çm	78.7 çin	Varies by Wire Gauge	Tin	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	All	Square	Header	10	0.1 in	2.54 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	200 V	0.335 "	8.51 mm	UL94 V-0	Male Pin		Black	85 °C	-55 °C	0.118 in	3 mm	2	Latch Lock/Eject Hooks	Brass	Gold	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.13
		10	$ 3.16
		180	$ 2.29
		540	$ 2.05
		1080	$ 1.91
		5040	$ 1.66

Description

General part information

HIF3BDF Series

Connector Header Through Hole 10 position 0.100" (2.54mm)
