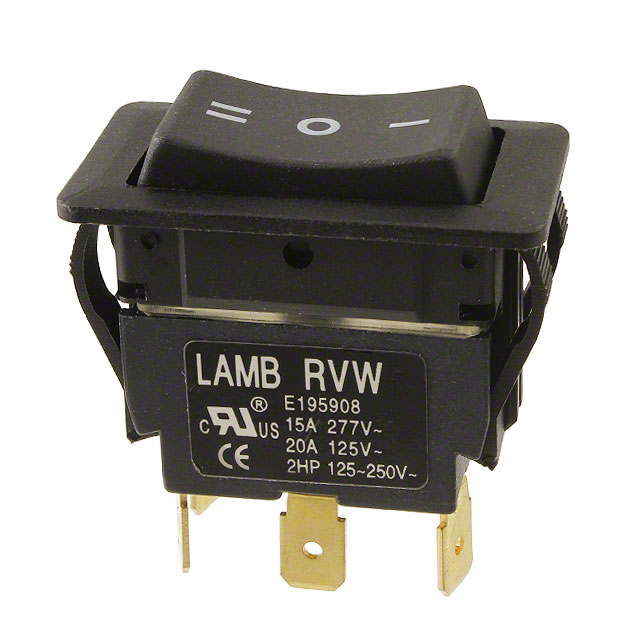

RVW4Z07D112S

Active

E-Switch

ROCKER; 20A/125VAC; RVW; RCONT MAX: 50MΩ; BODY: BLACK; 0÷55°C

Deep-Dive with AI

Search across all available documentation for this part.

RVW4Z07D112S

Active

E-Switch

ROCKER; 20A/125VAC; RVW; RCONT MAX: 50MΩ; BODY: BLACK; 0÷55°C

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RVW4Z07D112S

Actuator Marking	- O =
Actuator Type	Concave (Curved)
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.8 mm
Panel Cutout Dimensions [y]	21 mm
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

RVW41D1 Series

Part	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Actuator Type	Mounting Type	Electrical Life	Termination Style	Actuator Marking	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage Rating - AC	Illumination Type, Color	Illumination Voltage (Nominal)
E-Switch RVW42D1923	Red	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved)	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	ON OFF Vertical	20 A	On-Off	55 °C	-20 C	DPST	125 V
E-Switch RVW42D1100-117	Black	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved) - Illuminated	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	No Marking	20 A	On-Off			DPST	125 V	Neon Red	250 VAC
E-Switch RVW41D1100-116	Black	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved) - Illuminated	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	No Marking	20 A	On-Off	55 °C	-20 C	SPST	125 V	Neon Red	125 VAC
E-Switch RVW41D1100	Black	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved)	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	No Marking	20 A	On-Off	55 °C	-20 C	SPST	125 V
E-Switch RVW42D112L	Black	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved)	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	OFF ON Vertical	20 A	On-Off	55 °C	-20 C	DPST	125 V
E-Switch RVW4Z07D112S	Black	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved)	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	- O =	20 A		55 °C	-20 C		125 V
E-Switch RVW41D1100-126	Black	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved) - Illuminated	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	No Marking	20 A	On-Off	55 °C	-20 C	SPST	125 V	Amber Neon	125 VAC
E-Switch RVW41D1121	Black	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved)	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	O -	20 A	On-Off	55 °C	-20 C	SPST	125 V
E-Switch RVW42D1100	Black	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved)	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	No Marking	20 A	On-Off	55 °C	-20 C	DPST	125 V
E-Switch RVW42D1123	Black	36.8 mm	21 mm	IP54 - Dust Protected Water Resistant	Concave (Curved)	Panel Mount Snap-In	6000 Cycles	Quick Connect - 0.250" (6.3mm)	ON OFF Vertical	20 A	On-Off	55 °C	-20 C	DPST	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.09

Description

General part information

RVW41D1 Series

Rocker Switch 20A (AC) 125 V Panel Mount, Snap-In
