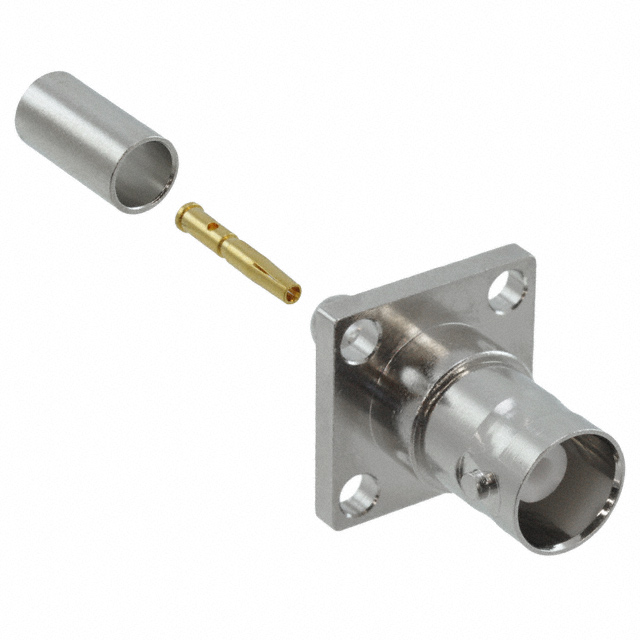

112272
ActiveAmphenol RF
CONN BNC JACK STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
112272
ActiveAmphenol RF
CONN BNC JACK STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 112272 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
1122 Series
| Part | Fastening Type | Body Finish | Housing Color | Voltage Rating | Connector Style | Center Contact Plating | Connector Type | Mating Cycles | Includes | Contact Termination | Frequency - Max [Max] | Body Material | Impedance | Shield Termination | Mounting Feature | Center Contact Material | Cable Group | Dielectric Material | Number of Ports | Features | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Bayonet Lock | Nickel | Silver | 500 V | BNC | Gold | Female Socket Jack | 500 | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | Crimp | 4 GHz | Brass | 75 Ohms | Crimp | Flange | Phosphor Bronze | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | Polyoxymethylene (POM) Acetal | 1 | ||||
Amphenol RF | Bayonet Lock | Nickel | Silver | 500 V | BNC | Gold | Female Socket Jack | 500 | Connector Contact Ferrule Lockwasher Nut Sleeve | Crimp | 4 GHz | Zinc Die Cast | 75 Ohms | Crimp | Bulkhead - Front Side Nut | Phosphor Bronze | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | Polytetrafluoroethylene (PTFE) | 1 | Isolated | |||
Amphenol RF | Bayonet Lock | Nickel | Silver | 500 V | BNC | Gold | Female Socket Jack | 500 | 1 Connector 1 Contact 1 Ferrule | Crimp | 4 GHz | Brass | 50 Ohms | Crimp | Flange | Phosphor Bronze | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Polytetrafluoroethylene (PTFE) | 1 | 0.2 dB | |||
Amphenol RF | Bayonet Lock | Nickel | Silver | 500 V | BNC | Gold | Female Socket Jack | 500 | Solder Cup | 4 GHz | Brass | 50 Ohms | Solder | Flange | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 1 | Extended Insulation | 0.2 dB | ||||
Amphenol RF | Bayonet Lock | Nickel | Silver | 500 V | BNC | Gold | Female Socket Jack | 500 | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | Crimp | 4 GHz | Brass | 50 Ohms | Crimp | Bulkhead - Front Side Nut | Phosphor Bronze | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Polytetrafluoroethylene (PTFE) | 1 | 0.2 dB | |||
Amphenol RF | Bayonet Lock | Nickel | Silver | 500 V | BNC | Gold | Female Socket Jack | 500 | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | Crimp | 4 GHz | Brass | 75 Ohms | Crimp | Bulkhead - Front Side Nut | Phosphor Bronze | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | Polytetrafluoroethylene (PTFE) | 1 | ||||
Amphenol RF | Bayonet Lock | Nickel | Silver | 500 V | BNC | Gold | Female Socket Jack | 500 | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve | Crimp | 4 GHz | Brass | 50 Ohms | Crimp | Bulkhead - Front Side Nut | Phosphor Bronze | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Polyoxymethylene (POM) Acetal | 1 | 0.2 dB | |||
Amphenol RF | Bayonet Lock | Nickel | Silver | BNC | Gold | Female Socket Jack | 500 | Solder | 4 GHz | Brass | 75 Ohms | Crimp | Bulkhead - Front Side Nut | Phosphor Bronze | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | Polytetrafluoroethylene (PTFE) | 1 | Isolated | -65 ░C | 165 °C | |||
Amphenol RF | Bayonet Lock | Nickel | Silver | 500 V | BNC | Gold | Female Socket Jack | 500 | Solder Cup | 4 GHz | Brass | 75 Ohms | Solder | Flange | Phosphor Bronze | Polytetrafluoroethylene (PTFE) | 1 | Extended Insulation |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.20 | |
| 10 | $ 6.51 | |||
| 25 | $ 6.15 | |||
| 50 | $ 6.00 | |||
| 100 | $ 5.70 | |||
| 300 | $ 5.10 | |||
| 500 | $ 4.80 | |||
| 1000 | $ 4.20 | |||
| 2500 | $ 3.99 | |||
Description
General part information
1122 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
