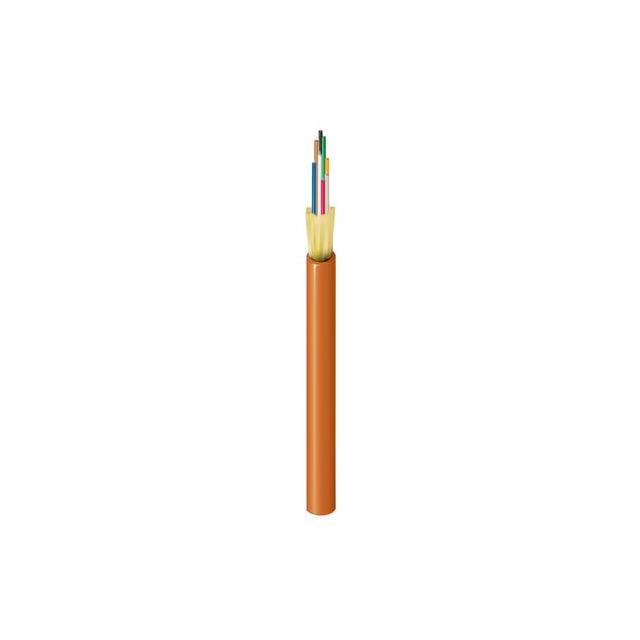

FI2D008R9

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FI2D008R9

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	8 RU
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	5.97 mm
Jacket (Insulation) Diameter [diameter]	0.235 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Multimode

Part	Type	Jacket Color	Jacket (Insulation) Material	Style	Cladding Diameter [diameter]	Features	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Core Diameter [diameter]	Tensile Strength	Ratings
Belden Inc. FI2D008P9	Multimode	Orange	Poly-Vinyl Chloride (PVC)	Multiple Fibers	125 µm	8 RU	Rip Cord	0.222 "	5.63 mm	70 °C	0 °C	50 µm	20.4 kg	OFNP
Belden Inc. FI2D008R9	Multimode	Orange	Poly-Vinyl Chloride (PVC)	Multiple Fibers	125 µm	8 RU	Rip Cord	0.235 in	5.97 mm	70 °C	-20 C	50 µm	20.4 kg	OFNR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fiber Optic Cable Orange Multimode 125µm
