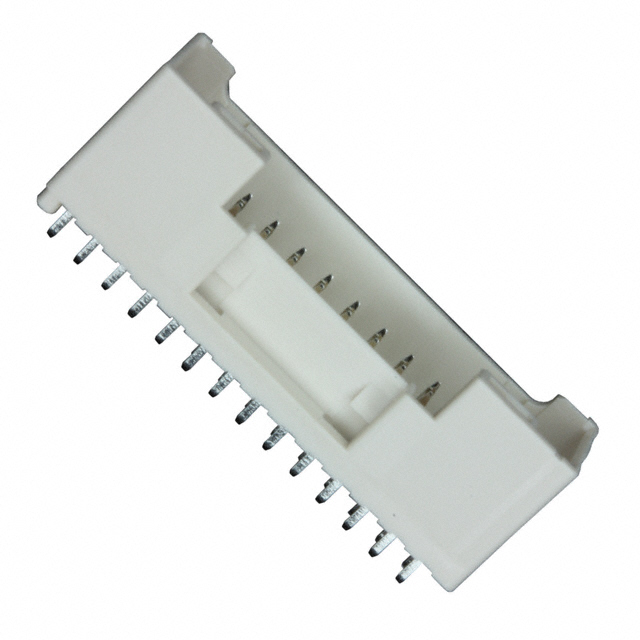

B28B-PUDSS-1

Active

JST Sales America Inc.

CONN HEADER VERT 28POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 28POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B28B-PUDSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	11 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Insulation Material	Contact Type	Number of Positions Loaded	Insulation Color	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Connector Type	Shrouding	Mated Stacking Heights	Contact Material	Style	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Fastening Type	Termination	Features	Voltage Rating	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Shape
JST Sales America Inc. B28B-PUDSS-1	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	All	Natural	Through Hole	0.079 in	2 mm	28	Header	Shrouded - 4 Wall	11 mm	Copper Alloy	Board to Cable/Wire	0.122 "	3.1 mm	Tin	Latch Holder	Solder	Board Guide	250 VDC	3 A	0.079 in	2 mm	UL94 V-0	-25 °C	85 °C	2	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1100	$ 0.65

General part information

Connector Header Through Hole 28 position 0.079" (2.00mm)
