09330242738

Active

HARTING Technology Group

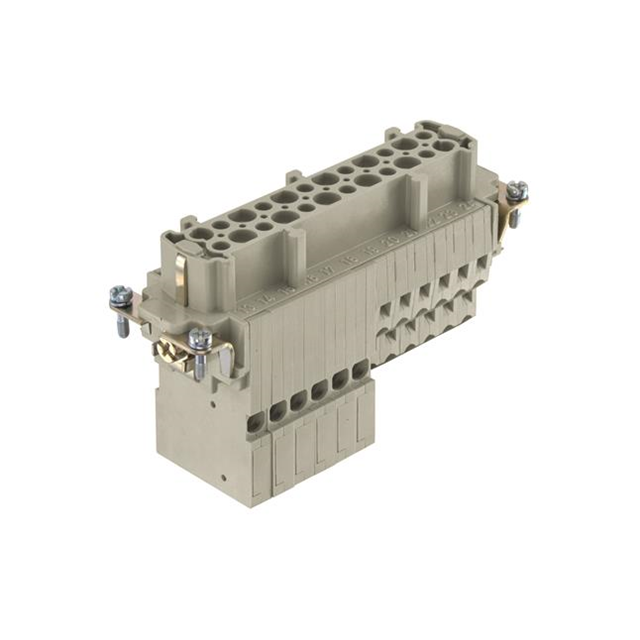

HAN ESS 24 POS. F INSERT CAGE CLAMP TERM ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN ESS 24 POS. F INSERT CAGE CLAMP TERM ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Termination Style	Gender	Connector Type	Housing Material	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Color	Size	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish	Contact Material
HARTING Technology Group 09330242728	24	Push In	Female
HARTING Technology Group 09330242656	24	Push In	Male
HARTING Technology Group 09330242754	24	Crimp	Female	Insert without Contacts
HARTING Technology Group 09330242607
HARTING Technology Group 09330242612		Crimp	Male	Insert without Contacts	Polycarbonate (PC)	16 A	UL94 V-0	600 V	Gray	48 B	125 °C	-40 °C	Han®
HARTING Technology Group 09330242619	24	Push In	Male
HARTING Technology Group 09330242738	24	Push In	Female
HARTING Technology Group 09330242789		Screw	Female		Polycarbonate (PC)	16 A	UL94 V-0	400 V	Gray	24 B	125 °C	-40 °C
HARTING Technology Group 09330242672		Push In	Male		Polycarbonate (PC)	16 A	UL94 V-0	500 V	Gray	24 B	125 °C	-40 °C		Silver	Copper Alloy
HARTING Technology Group 09330242702		Crimp	Female	Insert without Contacts	Polycarbonate (PC)	16 A	UL94 V-0	600 V	Gray	24 B	125 °C	-40 °C	Han®

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert 24 Position Push In
