ED115/2DS-DG
ActiveOn Shore Technology Inc.

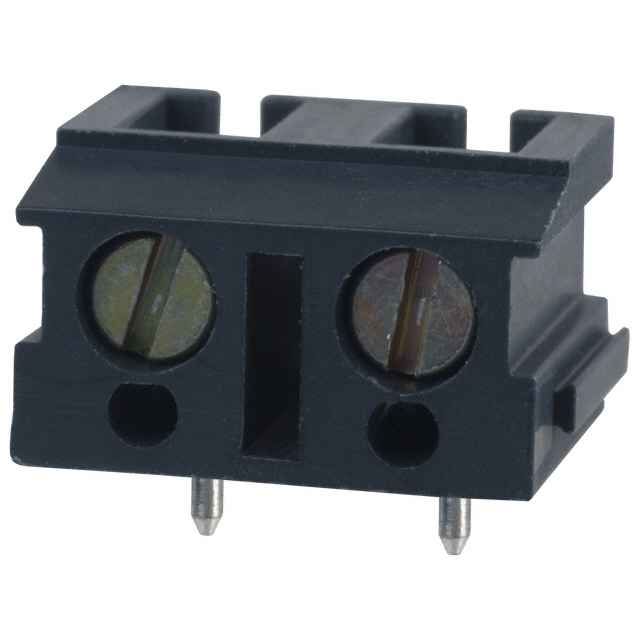

TERM BLK 2P TOP ENTRY 7.5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
ED115/2DS-DG
ActiveOn Shore Technology Inc.
TERM BLK 2P TOP ENTRY 7.5MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ED115/2DS-DG |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Gray |
| Contact Material - Plating [custom] | Brass |
| Current | 20 A |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.295 in |
| Pitch [x] | 7.5 mm |
| Positions Per Level | 2 |
| Screw Thread | M3 |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.80 | |
Description
General part information
ED115 Series
2 Position Wire to Board Terminal Block Vertical with Board 0.295" (7.50mm) Through Hole
