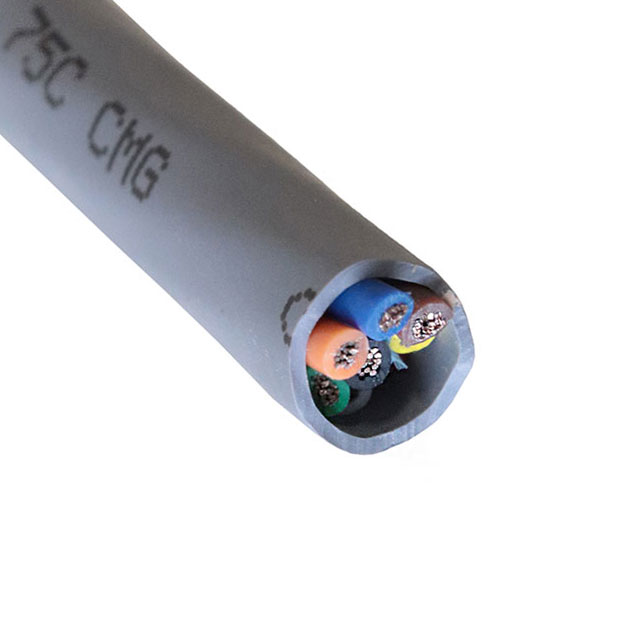

M33508 SL001

Active

ALPHA WIRE

CABLE 8COND 18AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 18AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	M33508 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.313 "
Jacket (Insulation) Diameter [diameter]	7.95 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2509
Voltage	300 V
Wire Gauge	18 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Voltage	Jacket (Insulation) Material	Ratings	Jacket Color	Number of Conductors	Conductor Material	Wire Gauge
ALPHA WIRE M33508 SL001	-20 C	80 C	0.025 in	0.635 mm	16	30 AWG	Multi-Conductor	1000 ft	304.8 m	0.313 "	7.95 mm	Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	UL Style 2509	Slate	8	Copper Tinned	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.32

General part information

8 Conductor Multi-Conductor Cable Slate 18 AWG 1000.0' (304.8m)
