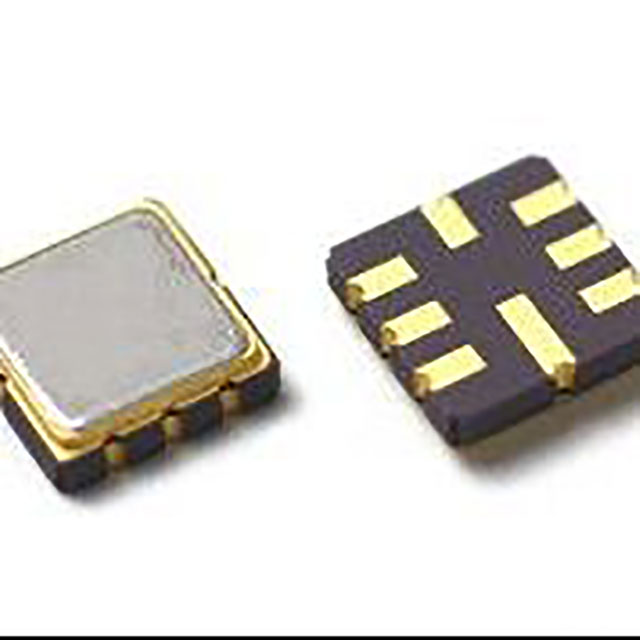

SF2296C
ActiveRFMi
FILTER, SAW, 312 MHZ, 8SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF2296C
ActiveRFMi
FILTER, SAW, 312 MHZ, 8SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF2296C |
|---|---|
| Applications | General Purpose |
| Bandwidth | 1.05 kHz, 750 kHz, 300 kHz |
| Frequency - Center | 312 MHz |
| Height (Max) [Max] | 0.067 " |
| Height (Max) [Max] | 1.7 mm |
| Insertion Loss | 1.8 dB |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.57 | |
| Tape & Reel (TR) | 1 | $ 1.28 | ||
| 1 | $ 1.41 | |||
Description
General part information
SF2296 Series
312MHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 1.8dB 300kHz, 750kHz, 1.05kHz Bandwidth 8-SMD, No Lead
