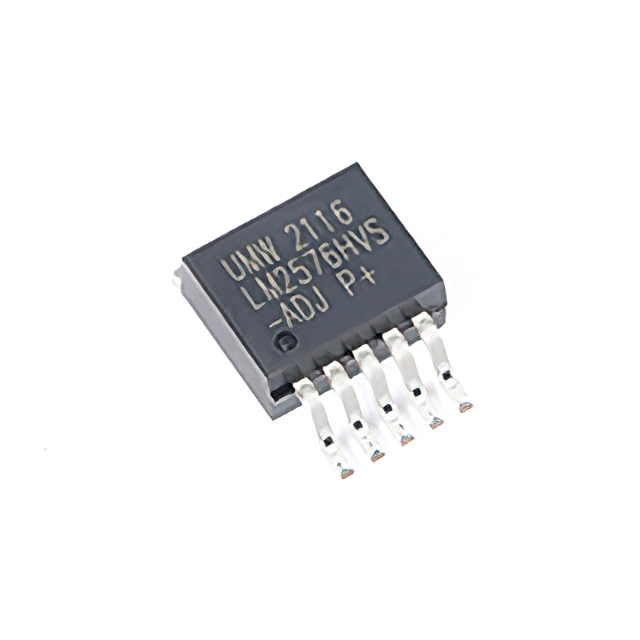

LM2576HVS-ADJ
ActiveUMW
IC REG BUCK ADJ 3A TO263-5L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM2576HVS-ADJ
ActiveUMW
IC REG BUCK ADJ 3A TO263-5L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM2576HVS-ADJ |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching | 52 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-263-6, TO-263BA, D2PAK (5 Leads + Tab) |
| Supplier Device Package | TO-263-5L |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 57 V |
| Voltage - Output (Max) | 57 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.62 | |
| 10 | $ 4.72 | |||
| 100 | $ 3.82 | |||
| Digi-Reel® | 1 | $ 5.62 | ||
| 10 | $ 4.72 | |||
| 100 | $ 3.82 | |||
| Tape & Reel (TR) | 500 | $ 3.39 | ||
| 1000 | $ 2.91 | |||
| 2500 | $ 2.74 | |||
| Tube | 135 | $ 8.86 | ||
Description
General part information
LM2576 Series
Buck Switching Regulator IC Positive Adjustable 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
